    Q345B 3 Axles 60t 20ft 40ft Flatbed Container Trailer

    Ask Lasest Price
    Brand Name : Fudeng Brand
    Model Number : Flatbed container trailer
    Certification : CE,ISO,CCC
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 800 Units per month
    Delivery Time : 25-30 working days
    • Product Details
    • Company Profile

    Q345B 3 Axles 60t 20ft 40ft Flatbed Container Trailer

    12.5M Container Semi Trailer With 1.2M Front Board Flatbed Container Trailer For Sale


    Flatbed container trailer for 20ft 40ft container trailer , We can provide with Customized service for you , dimension and


    other Specifications can be Choose by Customers ,We Exported a lot of flatbed container trailer to Tanzania ,Zambia ,


    Zimbabwe and so on . it is popular in these country , and we have many Customers in there ,If you have other Special


    request ,We can recommend the Standard flatbed trailer for you ;


    1.20ft 40ft container is suitable for standard 40ft flatbed container trailer with 12 units twist lock ;


    2.We can provide FUWA/BPW/L1/FD Brand Axles for Customers ;


    3.In usually , 3 Axles Flatbed trailer is popular in African , have a part of country need to design 4 Axles trailer ;

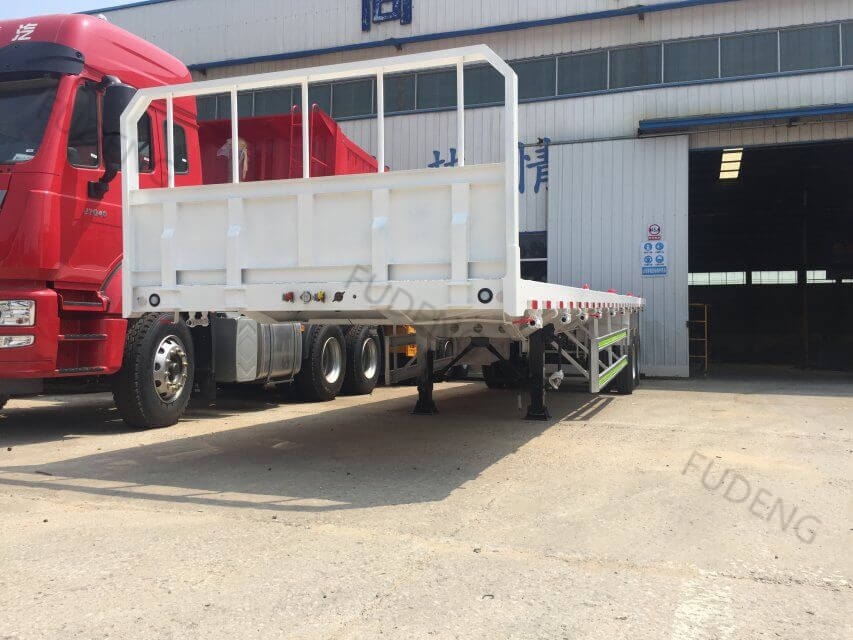

    3 Axles 40ft flatbed container semi trailer with Front board .


    Our Standard flatbed container trailer is not have front board , it can be design , We design 1.2m-1.5m front board


    before ,it is enough for Customers , And if you transport other goods ,Like cargo ,cattle .We also can provide side wall


    trailer and fence cargo trailer for you as well ;


    Specifications


    Specifications
    Dimension12.5m×2.5m×1.55m
    Payload50T-60T
    Tare weightAbout 7.5T
    Twistlock12 units
    Chassis
    Main beamHeavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
    Frame Beam

    Top Flange 14mm,width 140mm; Middle

    Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm

    Frame FloorThe Thickness is 3mm pattern
    Edge beam16# Channel
    Through beam10#Channel
    Along beam6#Channelx6
    Axle3 pcs
    Landing Gear28T lifting capacity with two speed Jost brand
    King Pin2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension
    Leaf Spring90mm(W)*16mm(T)*10 Layer


    Detail for Trailer



    So as to adapt rough road condition , We can provide thicken Mechanical Suspension and thicken leaf Spring for you .


    it can ensure the safety during the transport ;



    Spare tire rack , The Spare tire rack it can be detachable , and you can change it anytime , and under the trailer ,have


    many support to increase the capacity Support . can ensure carry many goods ;


    Our Service


    1.Fudeng trailer can according to Clients requirement to design Specifications ;


    2.Professional staff can answer clients questions with professional way ;


    3.the Spare parts can be design , and if you want to order from us ,We can send some spare parts to you for free ;


    Shipping terms



    Our Factory can according to your order Amount to choose the best Shipping way for you , If you order one unit ,you can choose Shipping by Bulk


    cargo ,if you order 2 units ,We can Shipping by 45HQ Container , it can save the Shipping cost for you ;


    Welcome to ask more information to us ! Welcome to visit our factory !
