13 Meters 70Ton Low Loader Semi Trailer For Heavy Duty Equipment
Transport Lowbed Trailer
3 Axles Low bed semi trailer for Heavy duty Equipment transport ,
our factory can provide with Customized service for you , We can
according to
your requirement to design , Specifications include Axles
,Suspension ,Leaf Spring and so on , all can be design for Clients
;
1.We can provide Mechanical Ladder / Hydraulic Ladder / Hydraulic
Folding ladder for Customers ;
2.Standard dimension is 13m*3m*1.75m ,If the dimension is not
enough for you ,We can addition for you as well;
3.In usually ,commonly Low bed semi trailer can transport 70 tons
Equipment no problem ;
Standard Low bed semi trailer Specifications as follows;
| Specification |
| Body |
| Dimension | 13000×3000×1750mm |
| The rated load | 50-70T |
| Bottom Platform | 4 mm Checkered Thickness |
| Main beam | Welding design “I” 260mm side beam , Main beam height 500mm |
| Frame beam | Top Flange 20mm; Bottom Flange 25mm, Middle Flange 12mm; |
| Ramp | Mechanical ladder |
| Chassis |
| Axle | 3 axles |
| Landing Gear | 28T lifting capacity with two speed Jost brand |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Leaf spring | 90mm(W)*16mm(T)*10 Layer
|

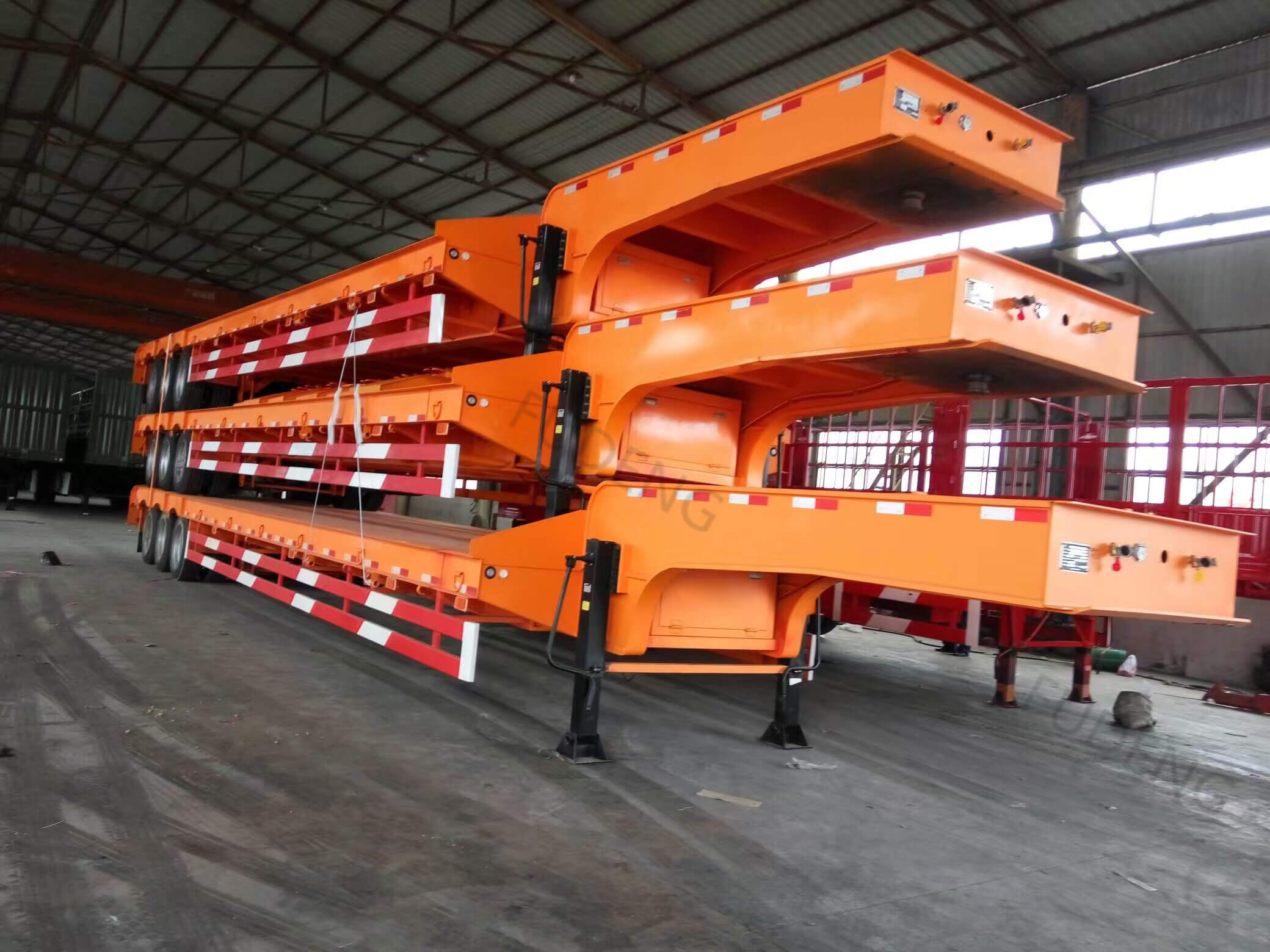

3 units FUWA Axles Low bed semi trailer with Mechanical ladder
13 Meters Low Loader semi trailer with Mechanical Suspension For
sale
These Specifications in the blank all can be design for Clients ,
If you have any requirement for Specifications feel free to contact
us please ,We
can according to your request to design the trailer for you ;
Adapt the rough road condition ,We can provide Mechanical
Suspension and thicken Leaf Spring for you , When you transport
heavy goods it
can have good capacity for trailer ,Our main beam use High quality
Q345B Carbon steel to design , it is strong "I" Shape main beam ;
Shipping terms
So as to save the Shipping Cost for you , We can according to your
order Amount to choose the best Shipping way for you , Like this
one three
units Low bed semi trailer Stack together can help you save the
Shipping Cost for you , the Ladder can moved ,Before Shipping we
need to Wax
careful for Clients to avoid to Rust by the ocean ;
Our Service
1.Reply your messages within 24 Hourse ;
2.if you can place an order from us ,We can send some Spare parts
to you for free ;
3.Competitive price waiting for you ;
4.We can pick you up at Airport to visit our factory ;
Welcome to visit our factory !
