Low Door semi trailer is hot sale products in our company .The dimension and
configurations all can be design for you and we
exported many country in Africa ,So we have rich Experience for low bed trailer .We have many customers visit our company as
well,Welcome to visit our company anytime;
Mechanical Ramps /Hydraulic Ramps /Hydraulic Folding Ramps all can
be Choosen by yourself ; The Ramps Opareta is easy and
you can opareta by yourself ,Specialy the Mechanical Ladder .Put
the chain down and then it will down by itself ;and if you use
Hydraulic Ramps is convenient as well , You can control it by
remotel control ;

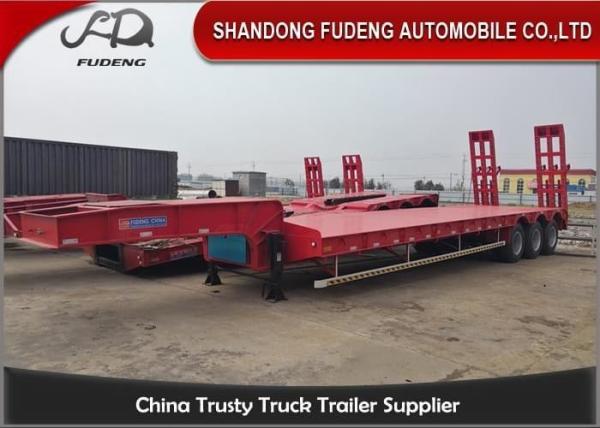

13 Meters Standard Length 40/60 Tons Low Door Semi Trailer For Sale
1. Our Standard Length is 13 meters and we can design for you
according to your transport Equipment ;
2. The Width can be Extented for you ;
3. The Ramps types you can choose by yourself ;
3 Axles low bed trailer for heavy machinery With Mechanical Ramps for sale
This one is our standard configurations low boy trailer with widen
device and Jost brand Landing Gear ,it can be linkage ;
2 Axles 30-40 Tons Transport Heavy Duty Equipment Low Flatbed
Trailer for sale
If you Carry heavy duty Equipment we can design Strong Main Beam
for you ;
Low Bed Configurations As Follows:
| Specification |
| Body |
| Dimension | 13000×3000×1750mm |
| The rated load | 60-80T |
| Bottom Platform | 4 mm Checkered Thickness |
| Main beam | Welding design “I” 260mm side beam , Main beam height 500mm |
| Frame beam | Top Flange 20mm; Bottom Flange 25mm, Middle Flange 12mm; |
| Ramp | Mechanical ladder |
| Chassis |
| Axle | 3 axles |
| Landing Gear | 28T lifting capacity with two speed Jost brand |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Leaf spring | 90mm(W)*16mm(T)*10 Layer |
| Braking System | Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air
tanks,Emergency relay valve |
| Tyre | 12r22.5 * 12 pcs |
| Accessories | One standard tool box |
| Spare tire rack | One unit |
If you are satisfied with the configurations we can according to
this one design for you .
Our company Specializes in semi trailer and we can provide
Sinotruck HOWO brand truck for you as well.If you are interested in
other products please leave your messages on website and we can
contact you soon .and we can provide with Customized service for
you ,About the dimension and configurations all can be design for
you ;
Welcome to Visit our Company !
