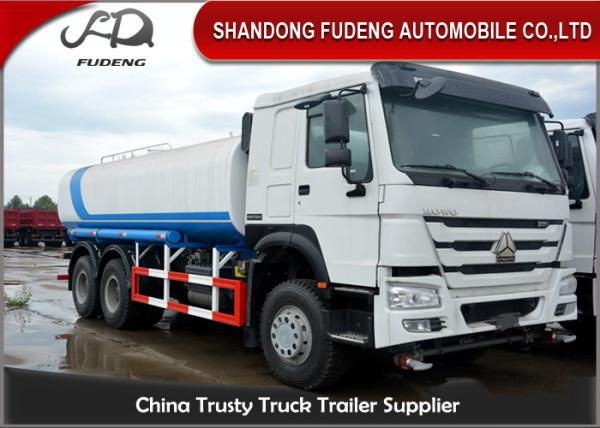

CHINA SINOTRUCK tank car Howo Vacuum Tank Truck Howo Truck tanker
truck
FEATURES Tractor trailer trucks.
Luxurious, majestic and dynamic appearance.
--Latest international style cabin: Euro type cabin.
--Crystal and upright mounted headlamp
Reliable and high-security Design
--Lateral stability: Patent and tailored frame design
--Safety and reliability: New type break drum.
Low fuel consumption and high efficiency
--High efficiency Power-train: Optimized power transmission design
--Low wind resistance: Streamlined cabin design
Confortable
--Flat floor cabin, enlarge the driver’s space.
--Noise isolation technology
--Ergonomic trim and adjustable seats
--Tilted footstep on front bumper.
--Streamlined cabin design
--Ergonomic dashboard
Specification:
| Representative Vehicle Model | ZZ4257M3241V | ZZ4257N3241V | ZZ4257S3241V | ZZ4257V3241V |
| Model | HW79 |
| Type | High roof cab, double berth, up/down and front/back adjustable
steering wheel ,VDO instrumentand control module, double-locking
safety belt ,exterior sun visor |
| Model | WD615.87 | WD615.69 | WD615.47 | D12.42 |
| Rated Power kW/rpm | 213/2200 | 247/2200 | 273/2200 | 309/2000 |
| Maximum Torque Nm/rpm | 1160/1100-1600 | 1350/1100-1600 | 1500/1100-1600 | 1820/1100-1500 |
| Displacement L | 9.726 | 11.596 |
| Type | Six cylinders inline, supercharged intercooler .WD615 Engine two
valve, supercharge postposition ,D12 Engine four valve ,central
supercharger |
| Clutch | Φ430 diaphragm spring clutch, Hydraulic control air assisted ,
WD615.47, D12.38 and D12.42 Engine standard 430A. WD615.69 standard
430B ,WD615.62,WD615.87 standard 430C |
| Transmission | SINOTRUK HW series 10 gears Transmission, main and auxiliary
transmission structure ,main Transmission with double counter shaft, auxiliary transmission with
planetary reduction. WD615.62,WD615.87 standard HW15710 ,WD615.69, Standard
HW15710/RT11509C WD615.47.D12.38 and D12.42 standard HW19710/HW19712 |
| Front Axle | HF7, rated load of 7t, disc-type or drum-type; heavy load with HF9
drum-type , rated load of 9t |
| Drive Axle | ST16 double reduction, speed ratio :3.93;4.42;4.8; heavy load truck
with HC16 double reduction , speed ratio: 4.42,4.8,5.73 |
| Suspension | Front and rear leaf spring suspension, front suspension with shock
absorber , transverse stabilizer, rear suspension is disconnected
type with transverse stabilizer. |
| Steering System | ZF8098 steering gear , ZF steering oil pump , system pressure 18MPa |
| Braking System | Service brake: dual-circuit air pressure brake : spring storage
energy without air ; auxiliary brake :Engine exhaust braking
;standard ABS, Engine EVB is optional and optional auto clearance
adjusting arm . |
| Electrical System | voltage : 24V ;generator :1540W ; starter :24V, 7.5kW ; battery :
12V/165Ah, 2 pieces |
| Tyre | 12.00R20; 12R22.5 is optional, 315/80R22.5 Tyre ; |
| Tank Volume L | 400L ; 260L auxiliary fuel tank can be added |
| Kerb Weight (vehicle/chassis) kg | 9210 | 9210 | 9210 | 9260 |
| Gross Mass kg | 25000 | 25000 | 25000 | 25000 |
| External Dimension (L*W*H) mm | 6800x2496x3563 | 6800x2496x3563 | 6800x2496x3563 | 6800x2496x3563 |
| Wheel Base mm | 3200+1350 | 3200+1350 | 3200+1350 | 3200+1350 |
Tractor Head Trucks Models.
371 Horse Power 20000 Litres Fuel Tank truck for sale
Water tanker trucks.
We can according to your request to your request to design the
litres for Tanker.
Welcome to China and visit our factory. We believe your smart
choice will be rewarded with good quality and competitive price.
Our company is manufacturer for semi trailer and we also can
provide Sinotruck HOWO brand truck for you ,Semi trailer and truck
all can provide with Customized service for you ,
We can provide all kinds of semi trailer for you Like Fuel Tank
trailer , LPG Tank trailer,Bulk cement Tank trailer and so on .
1.Fuel Tank trailer : We can according to your request to design
litres and compartment for you ;
2.LPG Tank trailer : The Tank body and other Specifications can
adjust for you before production ;
3.Bulk cement Tank trailer : The Shape for Bulk cement Tank trailer
we can design according to the cubic meters you need ;
If you are interested in other products in our company ,Welcome to
inquiry more information anytime !
Welcome to visit our factory !
