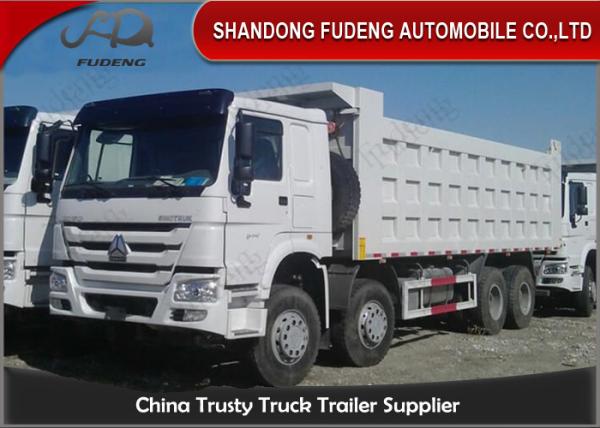

SINOTRUK HOWO tractor head trucks 6x4 40 tons Sand and stone rear Tipper Dump

FEATURES Tractor trailer trucks.

Luxurious, majestic and dynamic appearance.

--Latest international style cabin: Euro type cabin.

--Crystal and upright mounted headlamp

Reliable and high-security Design

--Lateral stability: Patent and tailored frame design

--Safety and reliability: New type break drum.

Low fuel consumption and high efficiency

--High efficiency Power-train: Optimized power transmission design

--Low wind resistance: Streamlined cabin design

Confortable

--Flat floor cabin, enlarge the driver’s space.

--Noise isolation technology

--Ergonomic trim and adjustable seats

--Tilted footstep on front bumper.

--Streamlined cabin design

--Ergonomic dashboard

Specification:

Cabin	HOWO plat Cabin,one sleeper,Air suspension shock absorb seat ,
	,Adjustable steering,air condition,bumper.windy deflector
Engine	Diesel, 4-stoke direct injection,6-cylinder in line, Inner cooling,radiator, Turbo-charging
	WABCO air compressor,two inlets cyclone air filter.
Model:	Euro 2			STEYR technology CNHTC engine
	MAX Horse power:			336hp
	Displacement(L):			9.726liter
	Max torque:			1360NM@1400-1600rpm
	Bore/stoke:			126mm/130mm
	Fuel consumption:			195g /kwh
Gear box	Model:			HW15710 manual
	Speed:			10speed,2 reverse
	Max torque:1800NM			Max Ratio:14.28
Axle(front/rear):
Front axle		HF 7 ton Steyr technology non-driving steering axle. Drum brake
Rear and middle axle		13ton Steyr technology driving axle, hub redactor, double reduction

Clutch	D430 diaphragm type,single dry frictional disc.hydraulic boosting.
Brake	Service brake: Double circuit penumatic(air) brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	ZF 8098, driver sit at the left hand side
Electric Equipment
	Operating voltage:				24V negative grounded
	Starter				24V,5.4KW
	Alternator				28V,1.5KW
	Battery voltage				2X12V/135Ah
Frame	Made of strengthened high intensity steel,parallel ladder with U-profiles,
	Riveted cross members.
Tyre	295/80R22.5/6+1 spare tyre with rim

Suspension system: heavy duty leaf spring type
	Front/Rear						10/12
Overall dimension(mm): 6110x2496x3668(Length x width x height)
Wheelbase	3500mm
Track:	Front/Rear					2022/1830
	Approach/Departure angle					16/42
	Front /Rear overhang					1500/1110
	Max speed					102km/h
Tare weight	7210kg		Diesel tank:					400L

Tractor Head Trucks Models.

40 Tons 6 X 4 Semi Trailer End Dump Truck For Sand Stone Transportation

6x4 Stype Dump Trucks.

40 Tons 6 X 4 Semi Trailer End Dump Truck For Sand Stone Transportation

Welcome to China and visit our factory. We believe your smart choice will be rewarded with good quality and competitive price.
