    Environmental Sanitation Water Tanker Truck 6 X 4 Drive Type 309KW Power

    Ask Lasest Price
    Brand Name : HOWO Brand
    Model Number : Tractor head trucks
    Certification : CE/ISO/BV/ADR/DOT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Units per Month
    Delivery Time : 20-30days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

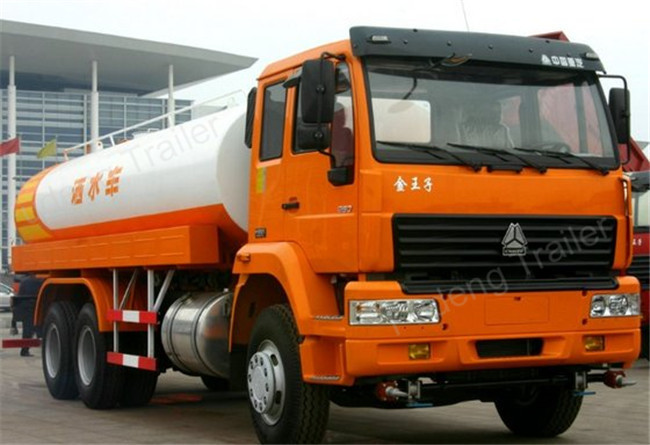

    Environmental Sanitation Water Tanker Truck 6 X 4 Drive Type 309KW Power

    Howo Tractor head truck environmental sanitation trucks watering and spraying water


    This Howo model of 4x2/6x4 tractor head truck is the proven products of SINOTRUK,which features reliable structure, greatloading capacity, excellent power, reliable performance. This model can meet the requirements of different conditions. This model can satisfy your need of long distance highwey transportation.


    Specification:

    Representative Vehicle ModelZZ4257M3241VZZ4257N3241VZZ4257S3241VZZ4257V3241V
    ModelHW79
    TypeHigh roof cab, double berth, up/down and front/back adjustable steering wheel ,VDO instrumentand control module, double-locking safety belt ,exterior sun visor
    ModelWD615.87WD615.69WD615.47D12.42
    Rated Power kW/rpm213/2200247/2200273/2200309/2000
    Maximum Torque Nm/rpm1160/1100-16001350/1100-16001500/1100-16001820/1100-1500
    Displacement L9.72611.596
    TypeSix cylinders inline, supercharged intercooler .WD615 Engine two valve, supercharge postposition ,D12 Engine four valve ,central supercharger
    ClutchΦ430 diaphragm spring clutch, Hydraulic control air assisted , WD615.47, D12.38 and D12.42 Engine standard 430A. WD615.69 standard 430B ,WD615.62,WD615.87 standard 430C
    Transmission

    SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure ,main

    Transmission with double counter shaft, auxiliary transmission with planetary reduction.

    WD615.62,WD615.87 standard HW15710 ,WD615.69, Standard HW15710/RT11509C

    WD615.47.D12.38 and D12.42 standard HW19710/HW19712

    Front AxleHF7, rated load of 7t, disc-type or drum-type; heavy load with HF9 drum-type , rated load of 9t
    Drive AxleST16 double reduction, speed ratio :3.93;4.42;4.8; heavy load truck with HC16 double reduction , speed ratio: 4.42,4.8,5.73
    SuspensionFront and rear leaf spring suspension, front suspension with shock absorber , transverse stabilizer, rear suspension is disconnected type with transverse stabilizer.
    Steering SystemZF8098 steering gear , ZF steering oil pump , system pressure 18MPa
    Braking SystemService brake: dual-circuit air pressure brake : spring storage energy without air ; auxiliary brake :Engine exhaust braking ;standard ABS, Engine EVB is optional and optional auto clearance adjusting arm .
    Electrical Systemvoltage : 24V ;generator :1540W ; starter :24V, 7.5kW ; battery : 12V/165Ah, 2 pieces
    Tyre12.00R20; 12R22.5 is optional, 315/80R22.5 Tyre ;
    Tank Volume L400L ; 260L auxiliary fuel tank can be added
    Kerb Weight (vehicle/chassis) kg9210921092109260
    Gross Mass kg25000250002500025000
    External Dimension (L*W*H) mm6800x2496x35636800x2496x35636800x2496x35636800x2496x3563
    Wheel Base mm3200+13503200+13503200+13503200+1350


    Tractor Head Trucks Models.

    Environmental Sanitation Water Tanker Truck 6 X 4 Drive Type 309KW Power


    Water tanker trucks.

    Environmental Sanitation Water Tanker Truck 6 X 4 Drive Type 309KW Power


    Welcome to China and visit our factory. We believe your smart choice will be rewarded with good quality and competitive price.
