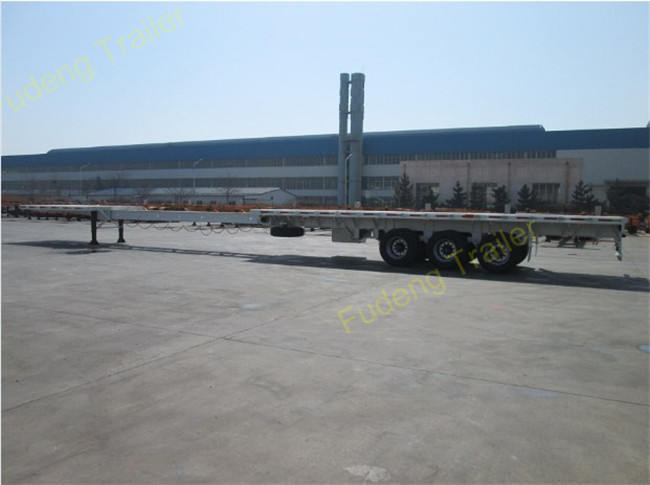

28 M - 56 M Windmill Blade Extendable Lowboy Trailer For Long Vehicle Transportation

28 m - 56 m Windmill Blade Trailer for long vehicle transportation

Fudeng Trailer provides a specialized solution for hauling wind tower blades. This Telescopic wind Blade transport Trailer can be adjusted to fit any size or brand of blade. It features a unique hydraulically operated self-steering system which increases safety and efficiency by automatically keeping the axles in line with the kingpin.

The windmill blade trailers were specifically designed and built to meet the demands of the growing wind energy transportation industry. The new trailers are now the longest available for transport of windmill blades.

The blade measures 59.6 meters in length, with a height of 3.8 meters.

28 M - 56 M Windmill Blade Extendable Lowboy Trailer For Long Vehicle Transportation

Specifications
Dimension	12.5m - 28m ×2.5m×1.5m (Outside)
Payload	40T-100T
Tare weight	About 7.5T
Bottom Platform	3-6mm thick checkered plate or flat plate
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	3 axles or customized, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional

28 M - 56 M Windmill Blade Extendable Lowboy Trailer For Long Vehicle Transportation

Welcome to contact us. Let us customize for you!
