High capacity 3 axle cement tank trailer power trailer for sale
Bulk cement tank semi trailer / cement bulk trailer / bulk cement
semi-trailer / bulk powder tanker trailer/dry power trailer
1. 20cbm--100cbm capacity available
2. 20T ~120T loading capacity
3. Unloading speed: 1.3ton / mins
4. Residual ratio :<15kg
5. Customized for any type

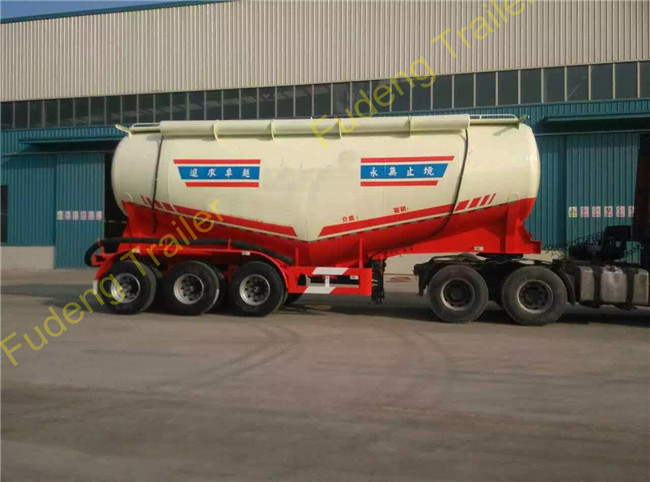

V shape bulk cement tanker trailer
V shape bulk cement tanker trailer
Specification
| Dimension: | 1300*2500*4000mm |
| Tank Body |
| Tank thickness | 5 mm |
| Front & end plate | 6 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ , double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 8m/each |
| Manholes | 3 pcs |
| Trailer Chassis |
| Main Beam | Welded design, |
| Axles | 3 axles BPW axles |
| Landing gear | 28T ,JOST |
| Kin pin | 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Tire | 12.00R24 , 12 pcs |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side
reflector,fog lamp,number plate light |
Main Features:
Using fully automatic computer CAD design techology, tanks using
automatic longitudinal/ring to the welding seam is firm and level
off, can be independent warehouse storage, shipment different
abrasive materials, unloading speed, low residual rate, safety
performance is high, easy to operate.
Shape is round or V tanks, W tankes , material can choose carbon
steel, stainless steel, aluminum alloy. Inside the bag or fluidized
bed or MIZIXING fluidized bed.
Good perforance of simple structure, convenient maintenance,
vulcanization.Can choose air compressor direct drive transmission
shaft(optional belt drive and motor drive)
Technical Index:
Under the condition of working pressure of 0.2 Mpa, discharging
speed is 1.2 to 1.5 T/mm residual rate of 2‰ or less,under certain
conditions, the discharging height 25 m or more.

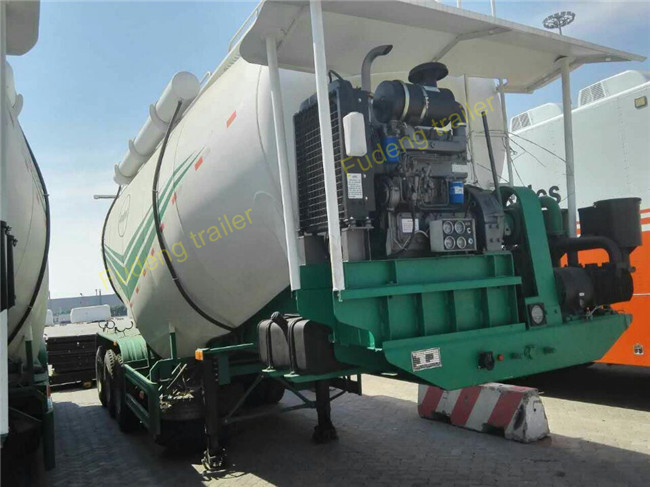

Install the rain board , protect the diesel engine , air compressor
Bulk cement tanker trailer with one big tool box
Hello friend , I don't know whether you have imported any truck
trailer form China , but I think you made the right choice ,if you
coming to us .our factory mainly do this business for over 20 years
,so if you need like that , just tell me your requirements , i can
send our reference price to you .
