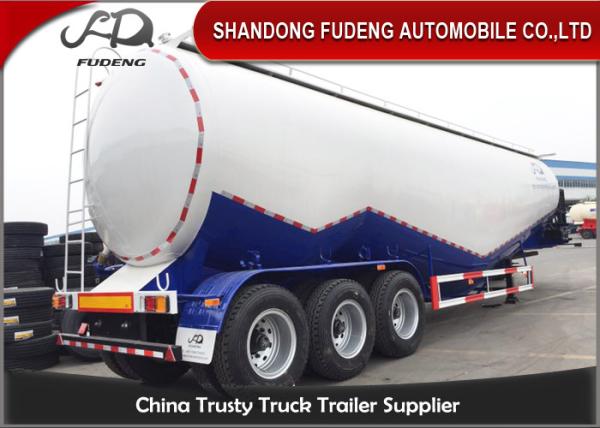

80 tons Cement Tanker Trailer , 3 axles Mobile Horizontal Cement
Fly Ash Silo Semi Trailer for Sale
Main Features:
Using fully automatic computer CAD design techology, tanks using
automatic longitudinal/ring to the welding seam is firm and level
off, can be independent warehouse storage, shipment different
abrasive materials, unloading speed, low residual rate, safety
performance is high, easy to operate.
Shape is round or V tanks, W tankes , material can choose carbon
steel, stainless steel, aluminum alloy. Inside the bag or fluidized
bed or MIZIXING fluidized bed.
Good perforance of simple structure, convenient maintenance,
vulcanization.Can choose air compressor direct drive transmission
shaft(optional belt drive and motor drive)
Technical Index: Under the condition of working pressure of 0.2 Mpa, discharging
speed is 1.2 to 1.5 T/mm residual rate of 2‰ or less,under certain
conditions, the discharging height 25 m or more.
Specification
| Dimension: | 1300*2500*4000mm |
| Tank Body |
| Tank thickness | 5 mm |
| Front & end plate | 6 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ , double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 8m/each |
| Manholes | 3 pcs |
| Trailer Chassis |
| Main Beam | Welded design, |
| Axles | 3 axles BPW axles |
| Landing gear | 28T ,JOST |
| Kin pin | 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Tire | 12.00R24 , 12 pcs |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side
reflector,fog lamp,number plate light |
Details
1 . Strength design for internal support structure can make the
tank body stronger and more durable.
2 . The bulk cement tanker semi trailer with the Wechai diesel
engine and air compressor ,can have a longer service life .
Hello friend , I don't know whether you have imported any truck
trailer form China , but I think you made the right choice ,if you
coming to us .our factory mainly do this business for over 20 years
,so if you need like that , just tell me your requirements , i can
send our reference price to you .
