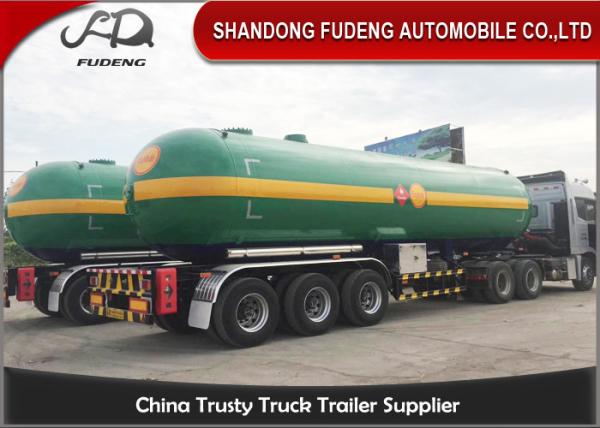

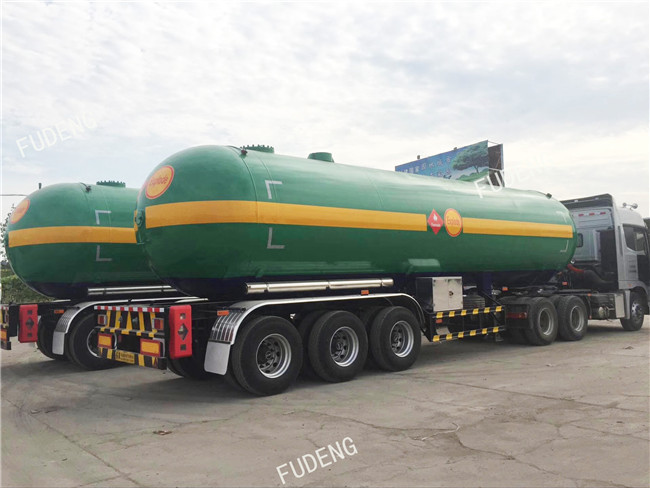

Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer

    Buy cheap Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer from wholesalers

    Buy cheap Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer from wholesalers
    • Buy cheap Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer from wholesalers
    • Buy cheap Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer from wholesalers

    Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer

    Ask Lasest Price
    Brand Name : FUDENG Brand
    Model Number : SDFDZH101201
    Certification : BV,CCC,ISO9001
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 800 sets per Month
    Delivery Time : 20 days after deposit
    • Product Details
    • Company Profile

    Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer

    Fudeng 3 axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker

    Main Features

    1) light weight design.

    2) Good quality carbon steel Q345B or T600 steel

    3) OEM


    Specification



    Dimensions(l*w*h)


    12800*2495*3800(mm)

    Tare Weight15000KGPayload21000KG
    Volume50CBMTotal Weight36000KG
    Shell Of Tanker
    ProductsLPG, Butane , PropaneTemperature-40°C to 50°C
    Fluid propertyflammableDesign pressure1.61MPa
    Corrosion allowance1.0mmCompartmentsOne
    Materials of bearing pressureTanker body : Q345R , 12.5mm
    End plate : Q345R , front:10mm,Rear:12.5mm
    Main Beam : T700
    Baffle inside the tank14-off Aluminum bolted plate , thickness is 5mm
    ShapeCylindrical ; Ellipse head
    Manhole1On top
    Safety Valve2On the top ; Only weld suitable flange
    Liquid meterOn left side of tanker, Only weld suitable flang
    Valve and pipe DetailAs customer's requirement
    Running System
    Axles313 TON Axles
    Suspension system1Leaf spring suspension
    Wheel rim711.75*22.5
    Tyre712 R22.5 vacuum
    Kingpin190#/50#
    Landing legs128Ton
    Pneumatic braking system with double air chambers per axle
    Electronical System
    7-Pin Socket124V 7-pin socket
    LED Lamp1All kinds of lamp
    Cable1Stander cable
    Accessories
    Small Tool box1
    Wheel carrier1
    Fire extinguisher2With red box
    Cabinet1
    Plastic fender6
    Static conductive belt1
    Impeller blasting1Completely
    Paint1As customer requirements

    Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer


    Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer


    Container type LPG tanker , It can be transported with a flat bed trailer or skeleton trailers


    Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport Trailer


    Fudeng 3 Axles Max 25Tons / 60m3 / 60000Liters Lpg Propane Tanker , LPG Transport TrailerTank

    All the chassis are manufactured under standard process to ensure quality.

    The tank can bear 1.61Mpa, 50 celcius degree

    Packaging & Shipping


    1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need.

    2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
