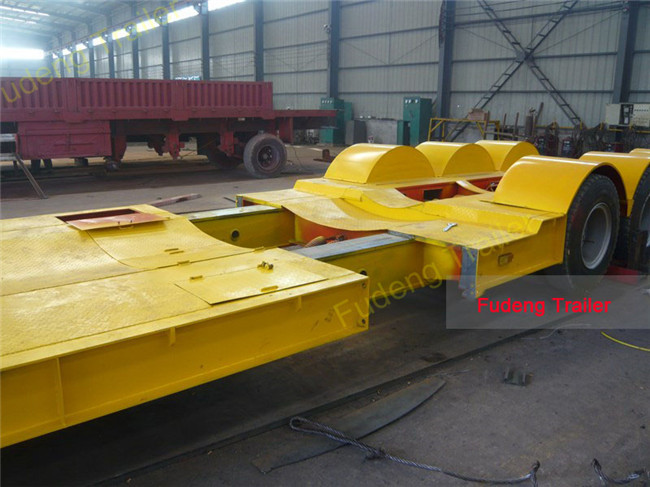

28 Meters Long Extendable Lowboy Trailer Windmill Blade Transport

28 meters long extendable lowboy trailer windmill blade transport

Fudeng trailer has been one of the driving forces within the transportation of wind turbine blades. Through the years we've made many modifications to our wind turbine blade trailers. Fudeng provides a specialized solution for hauling wind tower blades.

The windmill blade trailers were specifically designed and built to meet the demands of the growing wind energy transportation industry. The new trailers are now the longest available for transport of windmill blades.

The blade measures 59.6 meters in length, with a height of 3.8 meters.

28 Meters Long Extendable Lowboy Trailer Windmill Blade Transport

Specifications
Dimension	12.5m - 28m ×2.5m×1.5m (Outside)
Payload	40T-100T
Tare weight	About 7.5T
Bottom Platform	3-6mm thick checkered plate or flat plate
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	3 axles or customized, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO/ 40 HQ

28 Meters Long Extendable Lowboy Trailer Windmill Blade Transport

Welcome to contact us. Let us customize for you!
