Aluminum Alloy 38000L Gasoline Fuel Tanker Semi Trailer 10000 Gallon

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Aluminum Alloy 38000L Gasoline Fuel Tanker Semi Trailer 10000 Gallon

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD17012
Certification :	CE, ISO9001, CCC, ADR, DOT, SGS, etc
Price :	negotiation
Payment Terms :	T/T, L/C or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit

Add to Cart

Product Details
Company Profile

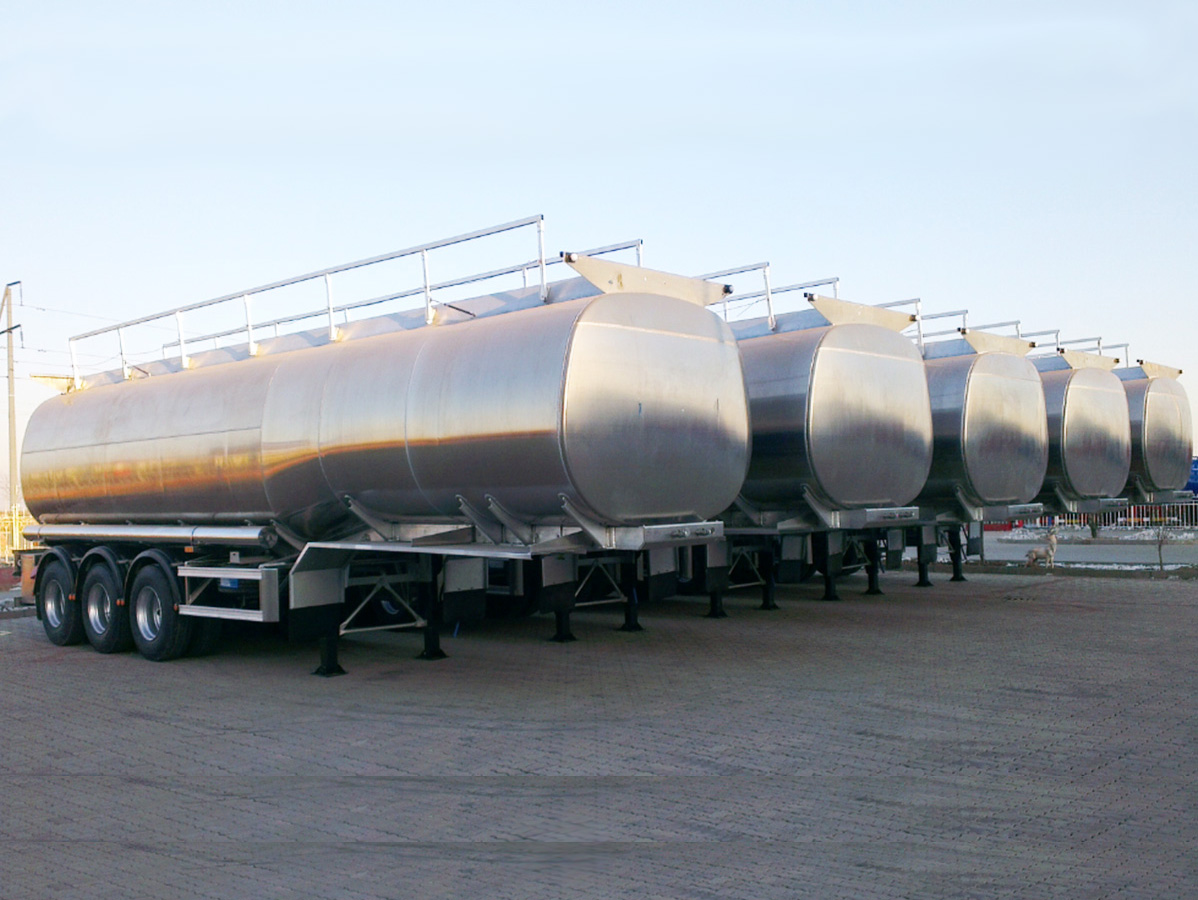

Aluminum Alloy 38000L Gasoline Fuel Tanker Semi Trailer 10000 Gallon

10000 Gallon 33000L Petroleum fuel Tank Semi Trailer mirror Aluminum tanker

Custom-built tank trailers by Fudeng can be built according to industry standards to transport crude oil and petro-chemicals to and from your destination. When you use Fudeng products, you can travel with confidence.

These days the Aluminum fuel tank trailer is very popular.

Alumium tanker advantages:

1. Light weight. Alumium tank trailer is about 4 ton lighter than steel tank trailer, can load more fuel. And low abrasion of tire.

2. Rustless and incorruptible ensure the purity of fuel and oil.

3. Good electrical conductivity. Alumium tank can conduct static in time, which will prevent spark when there is friction and crash. avoid fire and explosion.

4. Long service life and low maintenance cost. Alumium tank's life time is 7 years longer than steel tank on average. And alumium tank is easy clean and no painting.

5. High recovery rate.

Tanker trailer Specifications
Tank Body
Shape	Round
Dimension	11500mm2490mm3850mm or customized
Volume(m3)	38000L
Tare weight	About 9500kg
Tanker Body	4mm, aluminum alloy
End Plate	5mm, aluminum alloy
Manhole Cover	2 pcs
Discharging Valve	56 Diameter is 3 inch ball valve
Discharging Pipe	3” rubber hose, 2 pcs, 6m/each
Bottom Valve	1, guard against the oil leak event
Other	Ladder/ Walking Platform/ Folding armrest
Compartments	1
Chassis
Main Beams	Special design I beam, Q345 carbon steel material
Frame Beam	Upper plate is 14mm and lower is 16mm,middle is 8mm. height is 500 mm
Axle	3 axles, American type, FUWA brand.
Landing Gear	(D200T) 28T JOST brand
King Pin	2.00 or 3.5 inch bolt-in or welding king pin, JOST brand
Suspension	Mechanical spring suspension
Leaf Spring	90mm(W)16mm(T)10 Layer
Pneumatic Braking System	6 relay valve, 3 axles synchronization, WABCO brand
Tire	11.00R20, 12.00R22.5, 315/80R22.5 Double coin Brand
ABS	4S/2M
Accessories	Standard tool box, spare wheel carrier , Water tank
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO

The basic equipment is of valves, manhole, baffles, pipes, ladder, etc.

For optional equipment, pump, dispenser, water box, tool box, EU subsea valve, static electricity wire coil, gasoline vapor recovery unit, spill-free alarm, bottom loading devices, etc.

You can tell us your requests, we customize for you!
