Tri Axle Heavy Duty Dump semi Trailers for rock sand and coal
delivery
When you want a semi tipper to meet your haulage requirements
Fudeng has one perfectly suited to the task, if not Fudeng has the
manufacturing skills to customize it for you.
When you’re hauling grain, rocks, sand, gravel or waste, all the
semi tippers available from Fudeng factory are built to withstand
the
harshest conditions, only the very best materials and world class
manufacturing know how are used to create what is regarded as
one of the finest quality and toughest semi trailers around.
The trailer's dimension and configurations as follows:
| Tipper Trailer Specifications |
| Chassis |
| Frame | Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material |
| Frame Beam | Upper and lower plate is20mm,middle is10mm.height is 500 mm |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST (D200T) or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type/air suspension |
| Leaf Spring | 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/
100mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece
of 45L air tanks. |
| Rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional |
| Tire | 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional |
| ABS | Optional |
| Accessories | One standard tool box |
| Voltage | 24V |

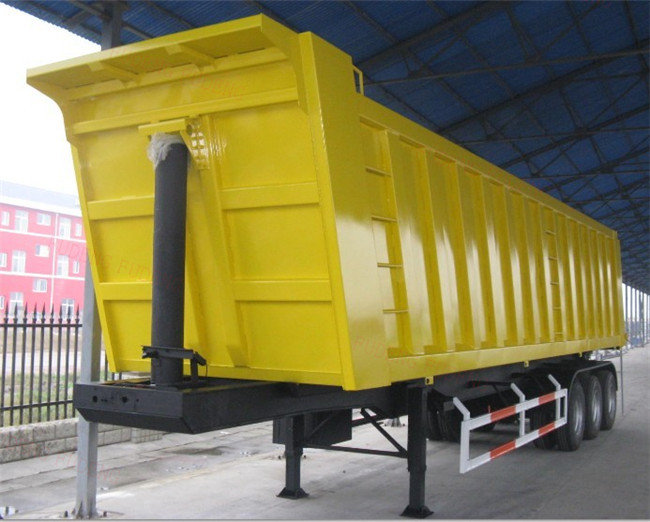

3 Axles Square Shape 30 Cubic Meters tipper truck for sale
Trailer's shape we can according to your transport tonnage and
goods to Choose for you and we can provide U Shape
and Square Shape for you;
We can disegn the dimension and configurations for tipper semi
trailer for you ,Look through the pictures to discover the full
range
and specifications of each individual Semi Tipper trailer we offer,
if you can’t find
what you want then give us a call and we will work with you to make
the trailer you want.
3 Axles 25 Cubic Meters tipper trailer for sale
Customers Visit
Our company is manufacturer for semi trailer ,we can provide
Sinotruck HOWO brand truck for you as well ,We
have many Customers visit our factory normal ,if you are interested
in our products Welcome to visit our factory
and we can pick you up in Airport .
Welcome to visit our company and we can pick you up in Airport and
we can go to factory together ;
If you are interested in our products please leave your messages to
us , we can customized for you
according to your request !
Welcome to your inquiry !
