BPW Axle 40ft Heavy Duty Flatbed Trailer With Super Single Tire Air Suspension

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD1704 Flatbed trailer
Certification :	CE, ISO, CCC, SGS, ADR
Price :	negotiation
Payment Terms :	L/C, T/T or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit

Add to Cart

Product Details
Company Profile

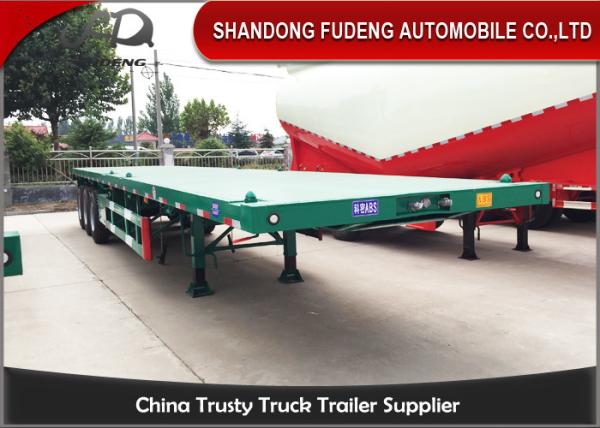

BPW Axle 40ft Heavy Duty Flatbed Trailer With Super Single Tire Air Suspension

BPW axle 40ft flatbed container trailer with super single tire air suspension

Flatbed container trailers are versatile open trailers used to transport a wide range of products and materials. Also known as flat, float, flat deck, and high boy trailers, some of the common products they are used to haul are:

40ft container, 20ft container
Flat steel
Coiled steel
Channel steel
Rebar
Lumber
Pipe
Pre-cast concrete
Building materials
Other products that can be strapped down to a flat deck.

Specifications
Dimension	12.5m×2.5m×1.5m (Outside)
Payload	35T-75T
Tare weight	About 8.5T
Twist lock	4, 8, 12 units or customized
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V

Specifications can choose:

High Quality Body with side walls
BPW, FUWA or Certificated Chinese brand Axles
ABS and EBS brake system
JOST or Chinese brand parking leg and king pin
Air and Mechanical Suspension
Strength Chassis Construction
Front Axle Lifting
Steel or Aluminum Rims

Fudeng trailer offers flatbed semi trailers for sale. Our extensive inventory of flatbeds provides a cost-effective selection of trailer configurations to meet your transportation needs.

If you have interests, contact us to get latest price!
