Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers

    Buy cheap Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers from wholesalers

    Buy cheap Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers from wholesalers
    • Buy cheap Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers from wholesalers
    • Buy cheap Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers from wholesalers

    Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers

    Ask Lasest Price
    Brand Name : FUDENG Brand Low bed trailer
    Model Number : Lowbed trailer/Lowboy trailers
    Certification : CE , ISO,ADR/DOT
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units Per Month
    Delivery Time : 15 work days after deposit
    • Product Details
    • Company Profile

    Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers

    Heavy Duty Truck transportation 100 ton Lowbed Semi Trailer Trucks And Trailers


    Low Bed Trailer which is knows also low loader and can carry heavy loads , excavators , construction machines, transformer, generator , cranes , caravans , army tanks and different kind of big machines. Lowbed Semi Trailers can be produced between 2 axles to 8 axles and loading capacity starting from 20 Tons to 180 Tons , rear or front loading Lowbed Trailers and platform as customer demand with different kind of specification according to demand.


    Features of Low Bed Trailers:

    Mechanical or hydraulic climbing ramp is an option for easy loading and unloading
    Lower height (hydraulic and air suspension be able to adjust height)
    Detachable gooseneck is an option
    Small turning radius, up to 55° steering angle
    Both automatically and manually all wheels steering
    Drop deck minimize trailer’s platform height, increase traffic ability for over height cargo
    Side bracket is an option(for increase overall width), removable and swinging


    LOW BED TRAILER Specification:

    DIMENSIONS
    Tare Weight12000kg
    Payload32200kg
    Total Weight60000kg
    Dimension13000*2495*1750mm Or customized
    Body10830*2300*600
    Wheel Track1840/1840/1840mm
    Wheelbase5700mm+1310mm+1310 mm
    Axle Weight24000(three axle combined)
    STANDARD SPECIFICATION
    Main Frame

    Heavy duty and extra durability designed;Opting for high tensile steel Q345B

    welded by automatic Submerged-Arc processes 480mm Height I beam.

    Top Flange 16mm,width 140mm;Middle Flange 8mm;Bottom Flange 16mm,width

    140mm

    FloorSteel Sheet 3mm thickness
    AxleThree Units of FUWA(brand) 13Ton axle
    SuspensionA Couple of FUWA(brand) mechanical Tri-axle suspension
    Leaf Spring8/8/8,-/10/10/10
    King PinOne unit of 2 SAE standard welded kingpin
    Landing GearTwo-speed,manual operation,heavy duty landing gear
    Wheel RimTwelve units of 8.25R22.5 rim
    TyreTwelve units of 11.00-2012PR 11.00R2012PR 12R22.512PR tubeless tyre
    Twist Lock

    Twelve nos in total-four nos are fasten mode,four nos are up/down mode,of ISO

    standard twist lock for 2×20ft;1×40ft container,the central locks can be laid down.

    Spare Wheel CarrierOne set of spare wheel carrier including a riser.
    Pneumatic Braking System

    A system with emergency brake and parking brake;

    Dual line-air brake, piggy back spring on all axles;

    Two unit of WABCO RE 6 relay valve;Four units of T30/30 spring brake chamber;

    Two units of T30 brake chamber,Two unit of 40L air tank;Two units of standard

    copper air-connector.

    Electrical System

    One unit of JAEGER POWAY,24V 7-pin ISO 1185 standard socket;Tail lamp with turn signal,brake light & reflector,

    Side lamp etc.One set of 6-core standard Cable.

    Painting

    Sand blasting processing on rust–proof protection

    One coat of anticorrosive primer

    two coats of finish urethane paint

    Color as customer choice

    AccessoryOne box with a set of standard trailer tool

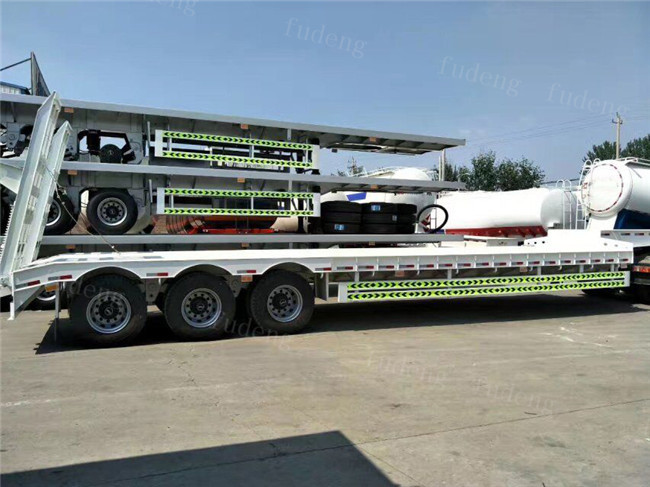

    3 Axles low bed semi trailers.

    Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers


    80Tons Low bed semi trailers

    Heavy Duty Truck transportation 80 ton Lowbed Semi Trailer Trucks And Trailers


    Welcome to visit our factory.
