Carbon Steel 45 Ton Tipper Semi Trailer For Sand / Stone / Bulk Cargo Transport

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Name: Carbon Steel 45 Ton Tipper Semi Trailer For Sand Stone Bulk Cargo Transport
Brand: Fudeng
Price: 1 USD

Add to Cart

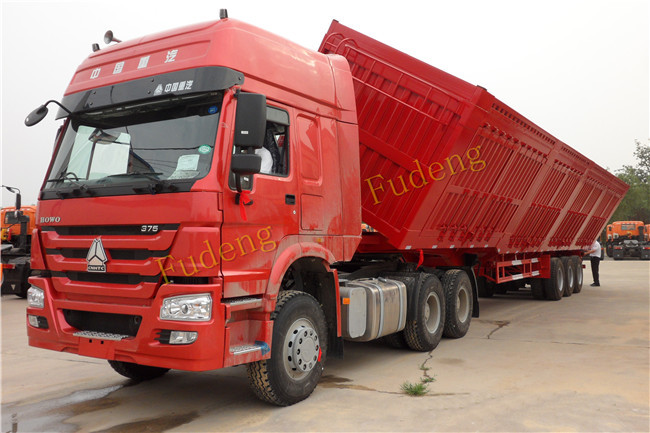

45 ton Side tipping dump semi trailer for coal sand and bulk cargo transport

You can choose side tipper or front dump for sand / stone / bulk cargo transport

Carbon Steel 45 Ton Tipper Semi Trailer For Sand / Stone / Bulk Cargo Transport

Side Tipping Trailer Specifications
Body
Dimension	1100025003300mm
Payload	70000 KGS
Box dimension inside	1090024001600mm
Box thickness	Side 3mm, plate 3mm
Hydraulic cylinder	5 side tipping cylinder +1 shifting cylinder, can unload both sides
Tare weight	About 11000kg
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B steel material
Frame Beam	Upper plate is 14mm and lower is 16 mm, middle is 8 mm. height is 500 mm
Axle	4 axles, 13T American type FD brand
Landing Gear	Standard 28T JOST brand
King Pin	2.00(5.0) or 3.5(9.0) JOST brand
Suspension	Mechanical suspension
Leaf Spring	90mm(W)16mm(T)10 Layer
Pneumatic Braking System	8 air chamber, 4 axles synchronization WABCO brand
Rim	8.25-20, 8.25-22.5,
Tire	11.00 R 20, 12.00 R 22.5
ABS	KEMI brand
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive prime, 1coats of final paint
Shipping Terms	By Bulk Cargo/RORO

Our advantages

√ Stronger chassis and suspension systems makes the dumper load more and could be suitable for bad road.

√ Larger loading capacity and better performance, Higher reliability and longer lifespan.

√ Long-time cooperation with the large shipping companies, supply faster delivery for our customers.

Carbon Steel 45 Ton Tipper Semi Trailer For Sand / Stone / Bulk Cargo Transport
