40ft / 20ft Double Tire 50 Ton Flatbed Cargo Trailer Leaf Spring Suspension

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

40ft / 20ft Double Tire 50 Ton Flatbed Cargo Trailer Leaf Spring Suspension

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD1704 Flatbed trailer
Certification :	CE, ISO, CCC, SGS, ADR
Price :	negotiation
Payment Terms :	L/C, T/T or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit

Add to Cart

Product Details
Company Profile

40ft / 20ft Double Tire 50 Ton Flatbed Cargo Trailer Leaf Spring Suspension

Fudeng can offer different type or flatbed trailer for dry loads and containers. These kind of Flatbed Trailers are used for carrying container, steel bar, other items which is loaded with pallet and normal cargo laoders. Fudeng can offer Flatbed Trailers with different specification according to country regulations and customer demand from 20 tons to 70 tons.

Flatbed container trailers are versatile open trailers used to transport a wide range of products and materials. Also known as flat, float, flat deck, and high boy trailers, some of the common products they are used to haul are:

40ft container, 20ft container
Flat steel
Coiled steel
Channel steel
Rebar
Lumber
Pipe
Pre-cast concrete
Building materials
Other products that can be strapped down to a flat deck.

Specification
Name	flatbed semi trailer 3 axle 40 ton
Model	SDFD1704
Overall dimension	12500 2500 1550mm
Loading capacity	40T
Axle brand and number	13T Fuwa Brand, 3 units
Wheel base(mm)	6880+1310+1310
Kingpin	50# or 90#
Steel Spring	90/16/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
Tyre and quantity	12R22.5 12pieces
Landing gear	28T, double speed operation
Platform plate	3mm Checkered steel plate
Brake system	Dual Line braking system , with ABS.
Brake air chamber	Four double and two single chamber

Our Advantages:

1. We apply Underwater plasma machine to cutting steel material, which is more precise than high flame cutting and no deformation.

2. The main beam and side beam are reinforced, which can make the trailer more stable and heavy-loaded.

3. We use high-intensive twistlocks. They can be hiden to for various container transportation.

4. Thicken No.8 channel steel Diagonal bracing and 100mm frame make the chassis more solid.

5. The trailer parts were connected by bolts and nots, which is easy repair and duarable.

6. We use 6 air chamber, 3 axles synchronization to guarantee security when braking.

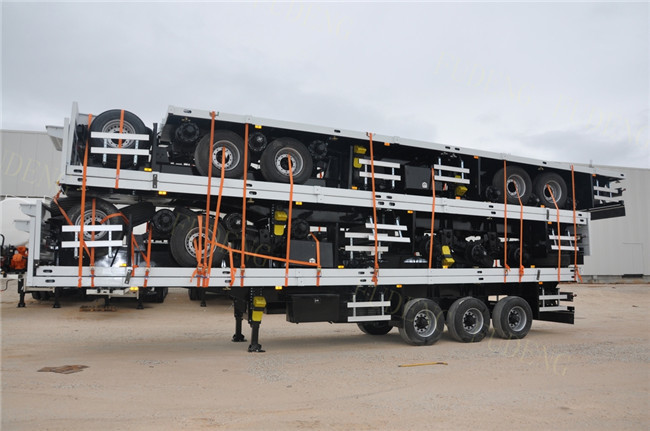

40ft / 20ft Double Tire 50 Ton Flatbed Cargo Trailer Leaf Spring Suspension

Super single tire is also available

40ft / 20ft Double Tire 50 Ton Flatbed Cargo Trailer Leaf Spring Suspension
