Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor

    Buy cheap Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor from wholesalers

    Buy cheap Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor from wholesalers
    • Buy cheap Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor from wholesalers
    • Buy cheap Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor from wholesalers

    Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1704 Flatbed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Price : negotiation
    Payment Terms : L/C, T/T or negotiate
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    • Product Details
    • Company Profile

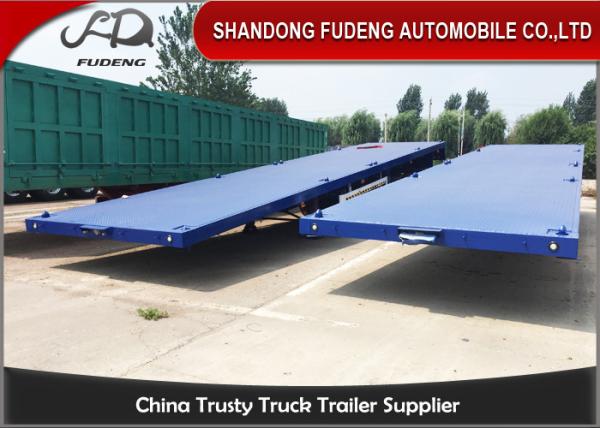

    Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor

    Three axles Container carrier flatbed semi trailer 40 foot for tractor



    Fudeng can offer different type or flatbed trailer for dry loads and containers. These kind of Flatbed Trailers are used for carrying container, steel bar, other items which is loaded with pallet and normal cargo laoders. Fudeng can offer Flatbed Trailers with different specification according to country regulations and customer demand from 20 tons to 70 tons.


    Flatbed container trailers are versatile open trailers used to transport a wide range of products and materials. Also known as flat, float, flat deck, and high boy trailers, some of the common products they are used to haul are:

    • 40ft container, 20ft container
    • Flat steel
    • Coiled steel
    • Channel steel
    • Rebar
    • Lumber
    • Pipe
    • Pre-cast concrete
    • Building materials
    • Other products that can be strapped down to a flat deck.

    Specification
    Nameflatbed semi trailer 3 axle 40 ton
    ModelSDFD1704
    Overall dimension12500 *2500 * 1550mm
    Loading capacity40T
    Axle brand and number13T Fuwa Brand, 3 units
    Wheel base(mm)6880+1310+1310
    Kingpin50# or 90#
    Steel Spring90/16/10 leaf spring suspension
    The material of Main beam

    The height of the beam is 500 mm,

    upper plate is14mm,down plate is 16mm,

    middle plate is 8mm.

    Tyre and quantity12R22.5 12pieces
    Landing gear28T, double speed operation
    Platform plate3mm Checkered steel plate
    Brake systemDual Line braking system , with ABS.
    Brake air chamberFour double and two single chamber

    Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor


    Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor


    Our Features:

    • Frame: The frame is manufacture by a structure, which are made of high strength steel. The gooseneck design reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity, heavy loading mass, not easy to be distorted.
    • Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
    • Suspension system: Mechanical suspension and air suspension series optional.

    Quality Three Axle Flatbed Container Trailer 40 Ft Flatbed Trailer For Tractor for sale
