    Carbon Steel 60t Semi Low Bed Trailer And Truck With Tractor Horse

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1702 low bed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    • Product Details
    • Company Profile

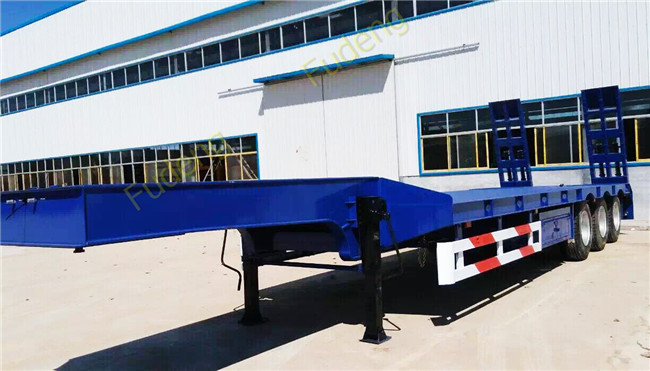

    Carbon Steel 60t Semi Low Bed Trailer And Truck With Tractor Horse


    Carbon Steel 60t Semi Low Bed Trailer And Truck With Tractor Horse


    As one of the company's most successful trailer ranges, our low loaders are widely recognized for their strength and durability. Models include the 30 Ton two axles to 100 ton four axles. Our company also manufactures multi axle low boy trailer to carry more than 100 tons which provides flexibility in transportation.

    3 AXLE SEMI LOW LOADER TRAILE


    Capacity:

    40.000 Kg - 60,000 Kg "max"

    Type:

    3 axle Semi Low Loader (Flat platform semi low loader trailer)

    (Option: Extendable semi low loader trailer)

    Weight:

    12,500 Kg – 18,000 Kg


    Specifications
    FrameWelding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
    Frame BeamUpper and lower plate is20mm,middle is10mm.height is 500 mm
    Frame FloorThe Thickness is 3-8 mm flat bed
    Axle3 axles or customized, BPW/FUWA/HUAJING brand
    Landing GearJOST (D200T)or CHINA BRAND 28T
    King PinJOST 2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension/Germany or America type/air suspension
    Leaf Spring90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
    Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
    Rim8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
    Tire11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
    ABSOptional
    AccessoriesOne standard tool box
    Voltage24V

    Our low bed semi trailer advantages

    1. The main beam is designed as special double vertical plate which is more solid than single vertical plate.
    2. The gooseneck is inside and outside reinforced to achieve heavy duty tranportation.
    3. The ladder and trailer body are connected by mechanical spring make it easy operate and high-intensive.
    4. The side beams are I shaped steel beam structures. Checkered floor aims increase friction and prevent cargo from skidding.

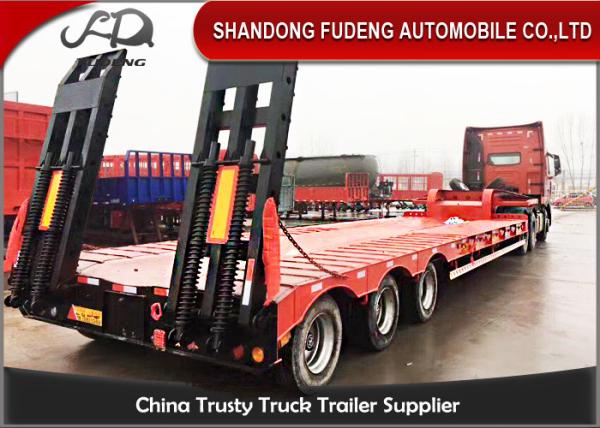

    Carbon Steel 60t Semi Low Bed Trailer And Truck With Tractor Horse


    Carbon Steel 60t Semi Low Bed Trailer And Truck With Tractor Horse


    Our low loader is adopted to transport construction machines, lifting vehicles and industrial parts.


    Welcome to contact us to get more information.
