    Transport Heavy Large Machine Low Flatbed Trailer , 45 Ton - 55 Ton Low Bed Trailer

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1702 low bed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    • Product Details
    • Company Profile

    Transport Heavy Large Machine Low Flatbed Trailer , 45 Ton - 55 Ton Low Bed Trailer


    Transport Heavy Large Machine Low Flatbed Trailer , 45 Ton - 55 Ton Low Bed Trailer


    Fudeng Trailer Company provides a comprehensive ranges of lowbed trailers, to meet all heavy haulage requirements.


    All lowbeds are designed and built to meet the harsh conditions synonymous with lowbed transportation. The frames are constructed from Q345B steels (high strength and high tensile), fitted with the highest quality running gear and fabricated and finished off to the standards that the organization is renowned for.


    1. The main beam is designed as special double vertical plate which is more solid than single vertical plate.
    2. The gooseneck is inside and outside reinforced to achieve heavy duty tranportation.
    3. The ladder and trailer body are connected by mechanical spring make it easy operate and high-intensive.
    4. The side beams are I shaped steel beam structures. Checkered floor aims increase friction and prevent cargo from skidding.

    Transport Heavy Large Machine Low Flatbed Trailer , 45 Ton - 55 Ton Low Bed Trailer


    Low Bed Trailer
    SpecificationDimensions
    (mm)
    13000x3000-3500x1650 (Standard Or Customized)
    AxleNumberThree(customized)
    Payload13T/16T
    BrandBPW /FUWA/Chinese Brand
    SuspensionMechanical Suspension/ Pneumatic Suspension
    Rim6.5-20/7.5-20/8.00-20/8.5-20
    LadderSpring/ Mechanical / Hydraulic ladder
    TiresTires8.25R22.5/10.00R20/11.00R20/12.00R20
    BrandTriangle or Double Coin Brand
    King PinSize2.0’’ or 3.5’’ traction pin
    BrandJOST Brand2.0 or 3.5 inch(bolted or welded type ) or China famous brand
    Landing GearJOST brand D200T or Chinese brand 28Tons28Tons
    FrameMain beam

    The height of the beam is 450/500mm,upper plate is 14mm down .

    Bottom platform3-6mm thick checkered plate
    AdditionalABSOptional
    LightLED light

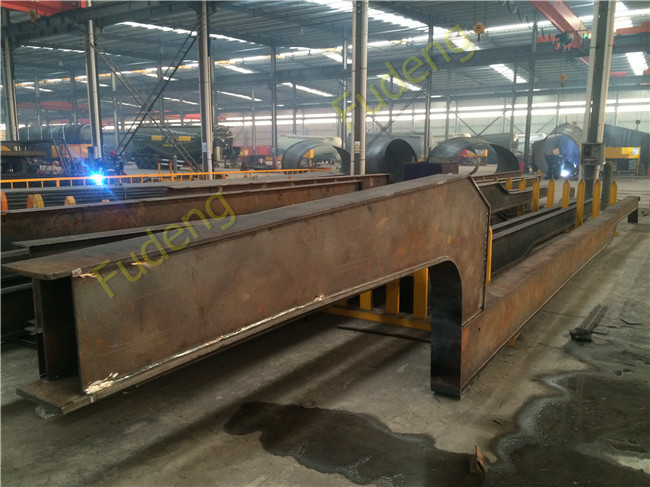

    Our beams


    Transport Heavy Large Machine Low Flatbed Trailer , 45 Ton - 55 Ton Low Bed Trailer


    Transport Heavy Large Machine Low Flatbed Trailer , 45 Ton - 55 Ton Low Bed Trailer


    Welcome to contact us to get more information.
