58800 Liters LPG Tank Trailer 40 Foot LPG Storage Tank Steel / Aluminum Material

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

58800 Liters LPG Tank Trailer 40 Foot LPG Storage Tank Steel / Aluminum Material

Ask Lasest Price
Brand Name :	FUDENG Brand
Model Number :	LPG/LNG/CNG Tanker trailers
Certification :	Asmi/CE/ISO/ADR/DOT
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500Units per Month
Delivery Time :	20-30days after deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

58800 Liters LPG Tank Trailer 40 Foot LPG Storage Tank Steel / Aluminum Material

Steel or Aluminum made LPG transport tanker semi trailer 40ft LPG storage tank

All LPG Tanker Trailer Adopts Famous Brand,

Axle:Fuwa/BPW/Jinsheng brand Optional

Famous Brand Axle Support

Trailer Durable and High Truck Attendance Rate

Chassis:

China Best Q345B-T700 support Stronger Trailer Skeleton

Tire:

Good Quality Tire support Trailer Running Safety&Smoothly

King Pin:

JOST Detachable Type support Durable and Fast&Easy Replace

Emergency Valve:

Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use

LPG Tanker trailers Specification:

Description	3 Axles LPG tanker trailers
Transportation of	Liquid petrol gas
Type of charge and discharge	Bottom loading
Capacity	58,800Liters
Weight	10760kg
Height	3980mm
Width	2490 mm
Length	12050 mm
TANK
Material	Carbon steel ,Q345R
Body	12.7mm
Lids/cover	6mm
Geometric of the tank	Cylindrical
Design pressure	1.77Mpa
Water test pressure	2.22Mpa
Woking pressure	1.77Mpa
Design Temprature	50
Wheelbase	7160+1310+1310mm
Rear track	1840/1840/1840mm
Total mass	40T
Truck size	13000×2500×3990mm
Curb weight	15.3T
Loading mass	24.7T
Steel spring NO	-/7/7/7
Tanker volume	58800L
Tanker material	Carbon stel Q345R
Tanker thickness	12.7mm
Tanker diameter	2470mm
‘CHASSIS
Frame	Carbon steel
Skates	1 set of skates brand Jost
Hook plate	Manufactured in thickness of 3/8’’
King ping	Of 2’’ bolt brand Jost 50#
Axles	3 axles brand BPW 13ton
Brakes	ABS
Wheels	Set of 13 wheels of steel 12.00R20
Tires	Set of 13 tires 12.00R20 triangle or similar (should come with company brand)
ACCESSORIES
Tire carrier	2 tire carrier of reinforced aluminum
General assembly security team
Lateral protection	2 bikers aluminum installed on either side of the tank
Extinguisher holder	Two fire extinguishers installed as following: one at the driver’s side next to the skate, and another next to the passenger side on the back side of the drawer valve
Bumper	Reducing impacts manufactured in structural aluminum of 1/4’’x4’’
Electric EQ	LED closed harness electrical system LED
Compacts	compacts installed: 2 in the front part and 1 in the rear
Dust guard	2 dust guard of rubber
Painting	Chassis paint of gray color (possible another color by future request)
Lights	LED type LED 3 side lights on each side Turn signals (2) Backup lights (2) Stationary lights and brake(2) Plate light (1)
Rear hook	Reinforced to pull tank in an emergency

3 Axles LPG Tanker trailers model.

58800 Liters LPG Tank Trailer 40 Foot LPG Storage Tank Steel / Aluminum Material

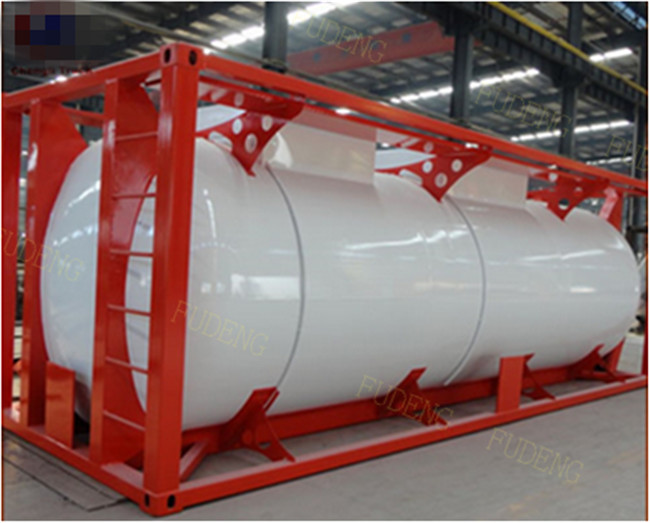

Standard 40ft LPG Tankers.

Welcome to our company!

1. We can pick up you in the airport port
2 book the hotel for you
3. show around the workshop and production line
4. we can supply the truck parts
5. we can supply the stock trucks if you need the trucks urgently.
