Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer

    Buy cheap Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer from wholesalers

    Buy cheap Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer from wholesalers
    • Buy cheap Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer from wholesalers
    • Buy cheap Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer from wholesalers

    Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1710 Detachable gooseneck trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Payment Terms : L/C, T/T or negotiate
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

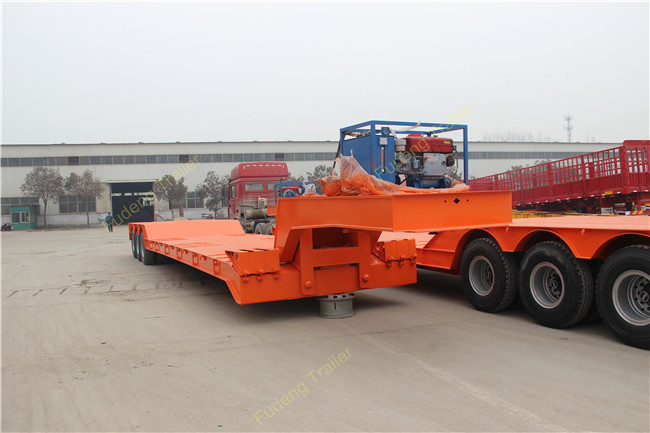

    Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer

    Hydraulic Detachable gooseneck trailer lowboy truck trailer load 80 ton



    Detachable Gooseneck Trailers are a form of double drop lowboy trailer that are designed to haul all types of heavy equipment. Ease and safety of loading are the primary features. Loading over the rear of a trailer increases in danger as the equipment gets heavier, taller and wider. The higher weights and higher center of gravity on today’s supersized construction, agricultural, and forestry equipment demand that both the loading height and transport height be significantly lower than our drop deck flatbed trailers.


    Our detachable gooseneck trailers lineup is offered with capacities from 35 to 100 tons 2 to 4 axle configurations. We offer spring and air ride suspensions as well as many other customizable options.


    Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer


    Specifications of detachable gooseneck trailer
    FrameSpecial design I beam, connected by bolts and nuts, Q345B carbon steel material
    Frame BeamUpper plate is 20 mm and lower is 20mm, middle is double 10mm plate, height is 450 mm
    Axle2 axles 16T America type JII specially designed brand
    RampFront spring ramp
    Hydraulic System15P Jianye brand
    King Pin3.5 (90mm) inch bolt-in king pin JOST brand
    SuspensionMechanical suspension
    Leaf Spring90mm(W)*14mm(T)*10 Layer
    Pneumatic Braking System4 relay valve; Spring brake chamber WABCO Brand
    Rim6.5-20 8pcs
    Tire8.25R20, 8 pcs Triangle brand
    AccessoriesOne standard tool box
    Voltage

    24V,7 pin socket, one set 6-core standard Cable Light

    Tail lamp with turn signal, brake light & reflector,

    side lamp etc

    Packing and shipping
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    Shipping TermsBy Bulk Cargo or container

    Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer


    Quality Hydraulic Gooseneck lowboy Trailer , 80 Tons Detachable front loading Low Loader Trailer for sale
