    20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System

    Ask Lasest Price
    Brand Name : FUDENG Brand
    Model Number : Side loader trailer
    Certification : CE/SGS/ BV/ADR/dot
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units per month
    Delivery Time : 20-30 work days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System

    Hydraulic Lifting Container Carrier Trailer/20FT 40FT Side Lifter Loader Chassis Truck.


    20ft &40ft Container side loader truck is superstructure designed to be fitted onto a Sino Truck truck chassis. The 20ft&40ft Container side loader truck is the lightest and most easily maneuverable side loader in the world. with its compact structure and most easily maneuvrable side loader in ther world. Excellent for use in narrow places an d where 20ft containers are dominating.


    Side loader trailers Feature:

    1) Reinforced main beam and side beam to ensure high loading.
    2) Adopting good brand crane with advanced technology
    3) Good quality axle, tyre and others parts


    Specification:

    ItemParameters
    Max. lifting capacity kg
    37000kg
    Max. working range4000mm
    Max. stabilizer outreach3200mm
    Curb mass14500kg
    Mass of sidelifter7250kg
    Maximum gross mass40000kg
    Outline dimension of semi-trailer(L×W×H)14100×2500×4000mm
    Outline dimension of sidelifter(L×W×H)1020×2500×2490mm
    Wheel base8000+1350+1350mm
    Track(front axle/rear axle)1820/1820/1820mm
    Front overhang / Rear overhang-/2370mm
    Approach angle/Departure angle-/13°
    FunctionTransport 2*20ft and 1*40ft container
    Main beamThe height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
    Loading weight40T
    Axle BrandFUWA 13Ton Axle
    Axle NumberThree
    Container twist locker12 Screw type
    King pin50mm/90mm removeable

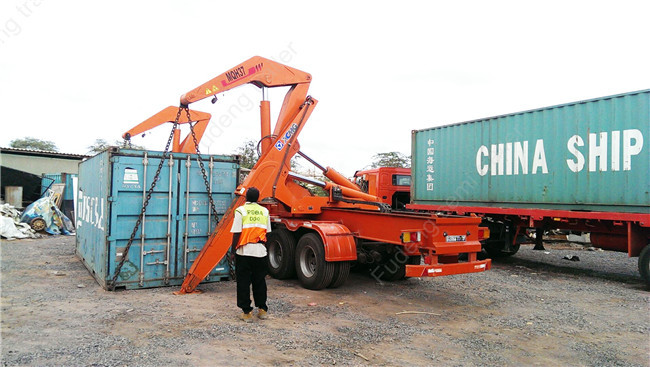

    20&40ft Side loader trailers.

    20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System

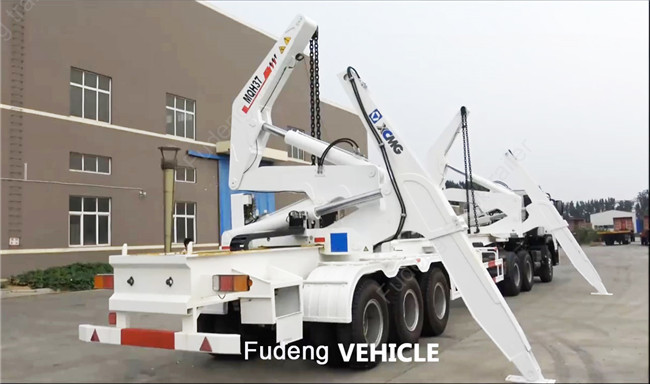

    40ft Side loader trailers.

    20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System


    29Tons Side loader trailers.

    20 Foot / 40 Foot Side Loader Trailer With Hydraulic Lifting System
