40ft Side Loader Trailer Loading Capacity 40 Tons FUWA 13 Ton Axle

40ft Container Side Loader Trailer loading capacity 40Tons Self Loading Container

Side loader trailer is the most versatile and cost effective container transport equipment. Our container loader trailers are ideal for placing shipping containers with precision anywhere a truck can access, then loading or unloading the container on the ground.

Side Loader Trailers Details:

Container handling~ Lift Capacity up to 72,000Kg

1 loaded 20 ft, / 2 30,000 Kg. each max

2.20 ft, 40 ft, 45 ft, (48 ft 53ft) loaded

3.We Stack Hi-Cube Containers 2 high ,

4.Containers can be weighed at your location

5.We transport LOADED / UNLOADED.

Specification:

Item	Parameters
Max. lifting capacity kg	37000kg
Max. working range	4000mm
Max. stabilizer outreach	3200mm
Curb mass	14500kg
Mass of sidelifter	7250kg
Maximum gross mass	40000kg
Outline dimension of semi-trailer(L×W×H)	14100×2500×4000mm
Outline dimension of sidelifter(L×W×H)	1020×2500×2490mm
Wheel base	8000+1350+1350mm
Track(front axle/rear axle)	1820/1820/1820mm
Front overhang / Rear overhang	-/2370mm
Approach angle/Departure angle	-/13°
Function	Transport 220ft and 140ft container
Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
Loading weight	40T
Axle Brand	FUWA 13Ton Axle
Axle Number	Three
Container twist locker	12 Screw type
King pin	50mm/90mm removeable

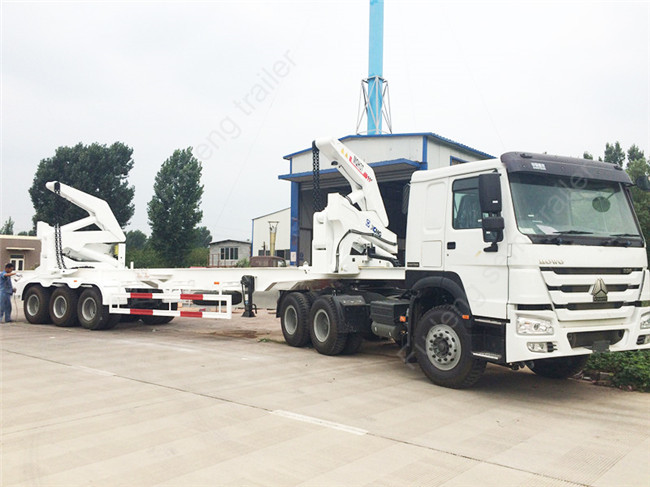

40ft Side loader trailers.

40ft Side Loader Trailer Loading Capacity 40 Tons FUWA 13 Ton Axle

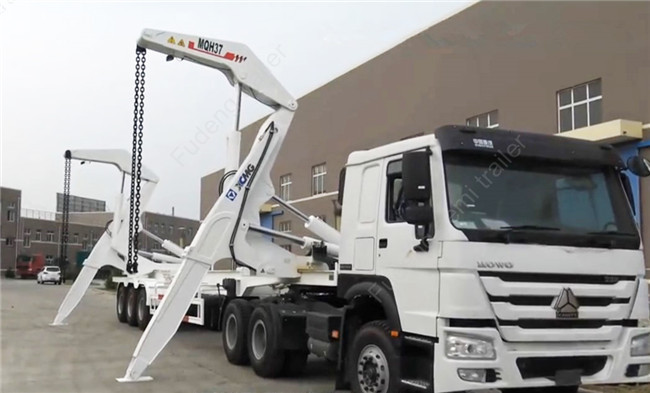

40ft side loader trailers.

40ft Side Loader Trailer Loading Capacity 40 Tons FUWA 13 Ton Axle

39Tons Side loader trailers.

40ft Side Loader Trailer Loading Capacity 40 Tons FUWA 13 Ton Axle
