    40ft 20 Ft Container Trailer , Double Hook Xcmg Container Side Loader Truck

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : FDZH04052
    Certification : CE, SGS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 sets per month
    Delivery Time : 35 work days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

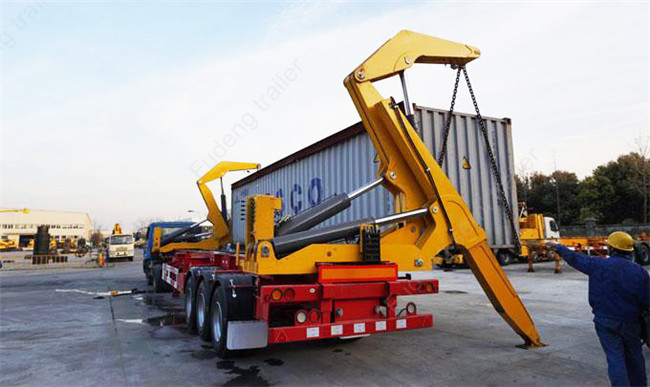

    40ft 20 Ft Container Trailer , Double Hook Xcmg Container Side Loader Truck

    20ft 40ft Self Loading Container Truck Trailer , xcmg side lifter box trailer


    Container Loading – Road Transfer


    40ft 20 Ft Container Trailer , Double Hook Xcmg Container Side Loader TruckWith FUDENG Sidelifters, operators can easily load containers onto companion trailers. This means as well as hauling its own containers, a FUDENG Sidelifter can load and unload whole convoys of containers without the need to relocate independent heavy lifting equipment.


    Operators have the ability to transfer fully loaded containers, without the need to wait for other lifting type machinery to arrive or become available. This eliminates the cost associated with leaving trailers on site and increases the opportunities for the number of pick-ups and drop-offs in each cycle. It can also free up staff and equipment for other tasks, thus increasing efficiency and reducing operational costs.


    Specification


    Main specification
    Max. lifting capacity37000kg
    Max. working range4000mm
    Max. stabilizer outreach3200mm
    Max. pressure of hydraulic28MPa
    Curb mass14500kg
    Mass of sidelifter7250kg
    Maximum gross mass40000kg
    Outline dimension of semi-trailer(L×W×H)14100×2500×4000mm
    Outline dimension of sidelifter (L×W×H)1020×2500×2490mm
    Wheel base8000+1350+1350mm
    Track(front axle/rear axle)1820/1820/1820mm
    Front overhang / Rear overhang-/2370mm
    Approach angle/Departure angle-/13
    Hydraulic systemHydraulic pump: Italian CASAPPA
    Hydraulic control valve: Netherlandish AMCA
    Electric control systemTelecontroller: German NBB
    Voltage: 12V
    Two chainTwo chain: lgus (imported)
    Diesel engineJapanese Kubota diesel engine
    Trailer ChassisL*W*H:14100*2500*4000mm
    Axles: 3*13 tons axles
    Tire: 12R22.5 tubeless tire, 12 pcs
    Suspension: Heavy duty type mechanical suspension
    Kingpin:2 inch or 3.5 inch bolted type
    Landing gear: 28T


    Details


    40ft 20 Ft Container Trailer , Double Hook Xcmg Container Side Loader Truck
    40ft 20 Ft Container Trailer , Double Hook Xcmg Container Side Loader Truck

    More details of 20ft 40ft Self Loading Container Truck Trailer , xcmg side lifter box trailer, why not contact us now for best price? Place order with us now, Presenting 500 usd spare parts for free.
