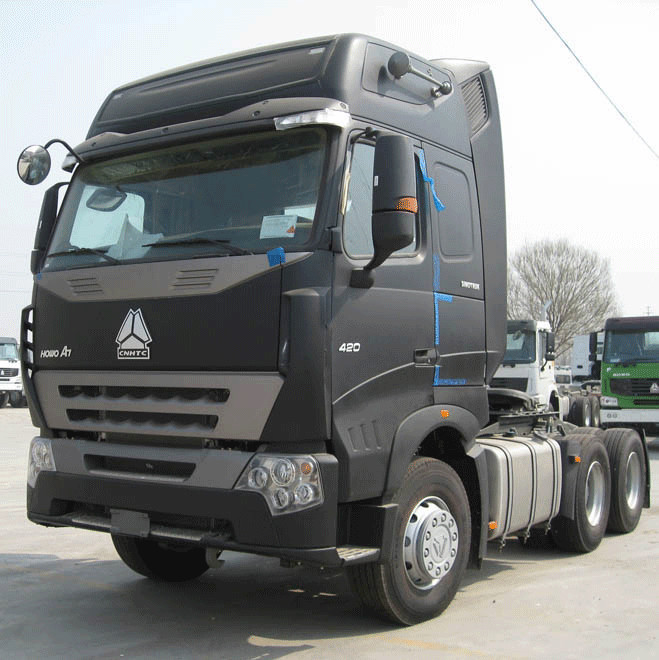

Tractor Head 420 Horse Power Sino Howo A7 tractor truck with one
beth 10 Wheerler
Cab
Traction type: 6X4
Driving type: LHD
Cabin: A7G , high floor, high roof. Air seats. Adjustable steering wheel.
Electric window lift. VDO music system (CD with USB interface).
Double sleepers. Electric cab lifting system. BEHR A/C.
Power System
Engine brand: SINOTRUK
Engine model: D12.42
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder
in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596 liters
Max. output: 420hp@2200rpm
Engine Brake: EVB
Brake power: 230-250hp
Equipped with Silicon oil fan.
Front axle: HF9 road-use front axle, 9tons loading capacity, plate (disc) brake
Rear axle: HC16 (Steyr strengthened axle, double reduction driving axle)
Ratio: 4.42 (4.8, 5.73 is optional)
Tyre: 12.00R20 radial tire (315/80R22.5 is optional)
Spring suspension: 4/12, 9/12
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 400L Aluminium alloy
Max. speed (km/h):101
Max. gradeability(%): 25
Kerb. mass: 9200kg
Total mass: 25000kg
Max towing load:40000kg
Wheel base (mm): 3225+1350
Front overhang (mm): 1540
Rear overhang (mm): 845/870
Front track (mm): 2022
Rear track (mm): 1830/1830
Approach angle: 15 degree
Departure angle: 46 degree
5th wheel: 3.5"
Dimension(mm): 6985*2496*3850
| Model | ZZ4257S3241 |
| Loading Capacity | 40 tons |
| Output Volume | 9.726L |
| Cabin | HW76 Cabin, Air Conditioner,With one bunk |
| Engine Model | WD615.47 |
| Engine | 371 HP Euro II |
| Gear Box | HW19710, 10 Forwards |
| Steering | Hydraulic Power Steering |
| Drive Alex | ST16 2X16 Ton |
| Front Axle | HF7 7 Ton |
| Wheel Base |
3200+1350mm |
| Tyre | 295/80R22.5 11 units |
| Allover Dimension(mm) | 6985x2550x3560 |
| Max Speed | 90km/h |
| Tank Capacity | 400L |
| Other | Safty Belt |
