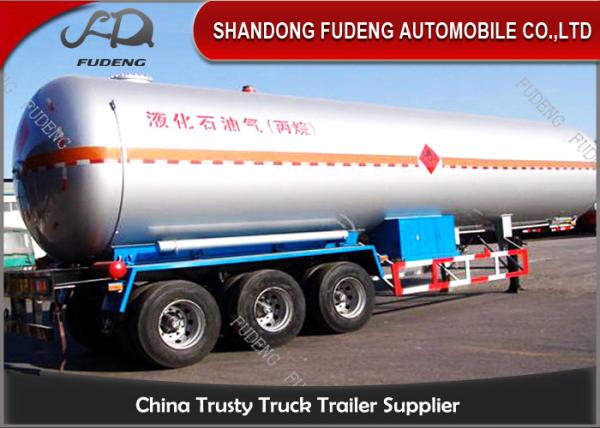

FUWA / BPW Tri - Axle LPG Tank Trailer Design Pressure 1.61MPa 50000 / 60000 Liters

50000 liters 60000 Liters LPG tanker trailer Liquid Propane Gas transport 3 axles

Our LPG trailer Features:

Equal weight distribution between axle and trailer delivers maximum payload hauling potential
Wide range of options for plumbing, piping, vapor recovery, heating, pumping, loading
Custom cabinetry available for the enclosure of pump, meters, valves as desired – including insulated cabinets
Other options include hydraulic pump drive, brake interlock system, air ride suspension, air-operated internal valves, stainless steel undercarriage, lift axle, custom paint

59CBM 25Ton LPG TRAILER Specification
Tanker Essential Information
Dimensions(lengthwidthheight)	1300025004000(mm)
Estimated Tare Weight	14926KG
Payload	25074KG
Total Weight	40000KG
Shell Of Tanker
Products	LPG , Propane
Fluid property	Flammable
Design temperature	to 50℃
Design pressure	1.61MPa
Corrosion allowance	1.0mm
weld joint factor	1.0
Major materials of bearing pressure	Tanker body : Q345R , 12mm GB713
	End plate : Q345R , 14mm GB713
	Main Beam : AG700(Non-bearing pressure material)
	16MnⅢNB/T47008
Filling weight per volume
Maximum filling weight
Compartments	ONE
Shape	Round(elliptical)
Safety valve (customized)	One On the top of tanker, A412F-25-22 DN100
Manhole (customized)	On top, DN450
Level gauge (customized) ZGM 2.47/2.5	On bottom of tanker, As customer's requirement
Detection
Heat treatment	Overall heat treatment in a furnace , 600℃ to 640℃
Flaw detection	100% Flaw detection
Test pressure	1.61MPa
Hydraulic test	2.1MPa
Magnaflux	Aim at welding place flaw detection can not cover
Running System
Axles	13 TON FUWA Axles
Suspension system	FUWA leaf spring suspension 139010
Wheel rim	9.0*22.5
Tire	Brand : Triangle,12R22.5
Kingpin	3.5",bolt on ,in rubbing plate,fabricated
Landing legs	JOST D200 single linkage, Gear type ,28T
Control System
Emergency Cut-off Valves	Gas phase QGJ43F-25-8 liquid phase QGJ43F-25-7
Ball Valve	Gas phase Q41F-25P-9 liquid phase Q41F-25P-8
Operating mode	Mechanical
Liquid gauge	ZGM 2.47/2.5
Pressure indicating thermometers	WTQ-280 -40-80℃ level 1.5
Pressure gage	YTN-100T 0—4MPa level 1.6
Pneumatic Brake System
Spring brake chamber	FUWA
Air connector	FUWA
Relay Valve	A412F-25-22 DN100 1.72MPa
ABS	ABS
Electronic System
7-Pin Socket	24V 7-pin socket
LED Lamp	All kinds of lamp
Cable	Stander cable
Accessories
Small Tool box
Wheel carrier
Fire extinguisher	8kg With red box
Cabinet
Steel fender
Static conductive belt	C shape
Impeller blasting	Completely
Paint	As customer requirements
