40 / 50 / 60 CBM LPG Tank Trailer Leaf Spring Suspension Carbon Steel Material

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

60 CBM LPG Tank Trailer Leaf Spring Suspension Carbon Steel Material

Ask Lasest Price
Brand Name :	FUDENG Brand
Model Number :	SDFDZH040731
Certification :	BV,CCC,ISO9001
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	200 sets per Month
Delivery Time :	20 - 30days after deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

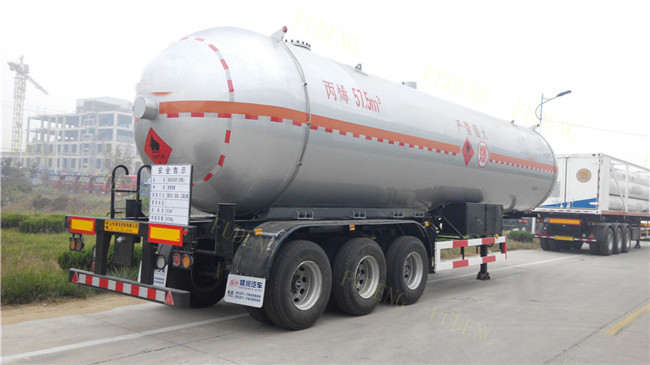

40 / 50 / 60 CBM LPG Tank Trailer Leaf Spring Suspension Carbon Steel Material

40m3 50m3 60m3 lpg tank semi trailer , lpg gas trailer , lpg propane tanker trailers

1.We have the biggest LPG truck in China,and the valid volume is 35.5CBM.

2.We have the biggest LPG semi-trailer in China,and the valid volume is 60CBM, low transportation cost,bring more profit.

3.We can also provide LPG storage tank ranged from 5CBM to 120CBM,both on the floor ones and in the ground ones.

4.We haveCE, ISO,BV certification.

5.Suspension system: Mechanical suspension and air suspension series optional.

Specification

Dimensions(lwh)	1280024953800(mm)
Tare Weight	15000KG				Payload		21000KG
Volume	50CBM				Total Weight		36000KG
Shell Of Tanker
Products			LPG, Butane , Propane		Temperature		-40°C to 50°C
Fluid property			flammable		Design pressure		1.61MPa
Corrosion allowance			1.0mm		Compartments		One
Materials of bearing pressure			Tanker body : Q345R , 12.5mm
			End plate : Q345R , front:10mm,Rear:12.5mm
			Main Beam : T700
Baffle inside the tank			14-off Aluminum bolted plate , thickness is 5mm
Shape			Cylindrical ; Ellipse head
Manhole			1	On top
Safety Valve			2	On the top ; Only weld suitable flange
Liquid meter			On left side of tanker, Only weld suitable flang
Valve and pipe Detail			As customer's requirement
Running System
Axles		3				13 TON Axles
Suspension system		1				Leaf spring suspension
Wheel rim		7				11.75*22.5
Tyre		7				12 R22.5 vacuum
Kingpin		1				90#/50#
Landing legs		1				28Ton
Pneumatic braking system with double air chambers per axle
Electronical System
7-Pin Socket		1				24V 7-pin socket
LED Lamp		1				All kinds of lamp
Cable		1				Stander cable
Accessories
Small Tool box		1
Wheel carrier		1
Fire extinguisher		2				With red box
Cabinet		1
Plastic fender		6
Static conductive belt		1
Impeller blasting		1				Completely
Paint		1				As customer requirements

Packaging & Shipping

Can be put into 40'HP Container.————2 sets put into one 40'HP Container(Cut Rear)

Can be put into 45'HP Container.————2 sets put into one 45'HP Container(The Whole)

Welcome to visit our company!
