    Tri-Axles 10 Car Transporter Trailer , Auto Vehicle Transport Trailer

    Ask Lasest Price
    Brand Name : FUDENG Brand
    Model Number : Car carrier trailers
    Certification : CCC / ISO / SGS / BV
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Units per Month
    Delivery Time : 20-30days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    Tri-Axles 10 Car Transporter Trailer , Auto Vehicle Transport Trailer

    10 car carrier trailers Tri-Axles auto vehicle transport truck trailer

    A Car carrier trailer, known variously as a car carrier trailer, car hauler, auto transport trailer,

    etc., is a type of trailer or semi-trailer designed to efficiently transport passenger vehicles via truck.

    Like other semi-trailers, most commercial car-carrying trailer attach to the tractor using a fifth

    wheel coupling. Trailers can either be enclosed, possessing walls like a conventional box trailer,

    which affords the shipped vehicles more protection at the cost of lower capacity; or open, as in the commonly seen skeletal tube steel design, which exposes the vehicles to the elements but allows for greater carrying capacity.


    Our Products Advantage:
    1). To all kinds of cars, like BMW, NISSAN and so on.
    2). 2 axles, 3 axles to suit different loading capacity
    3). Two floors to loading 8-10 units. If more, the length will be increased.
    4). Hydraulic up and down system to make loading and unloading easy.


    Car carrier trailers Specification:

    Trailer Model3 Axles car carrier trailer

    Dimension

    (Lx W x H)

    (mm)

    15000x2600x3000
    FunctionFor car/vehicle transportation
    Main Frame

    350mm height I beam, Top Flange 10mm,

    Middle Flange 6mm; Bottom Flange 12mm

    Floor3mm thickness
    AxleFUWA 2 axles X 13T
    Traction PinJOST 3.5”(90mm)
    Suspensionleaf spring suspension
    Landing gearJOST 25T
    Tyre10.00R20 (4 pcs)
    Spare Wheel CarrierOne set of spare wheel & tyre carrier including a riser.
    Braking systemwith ABS.
    Electric System

    One unit of JAEGER POWAY, 24V 7-pin ISO1185 standard socket;

    Standard Tail lamp with turn signal, brake light & reflector,

    Side lamp etc.

    Painting

    Sand blasting processing on rust-proof protection. One coat of anticorrosive primer,

    two coats of finish urethane paint, Color as customer choice.

    OthersHydraulic dump and other fittings

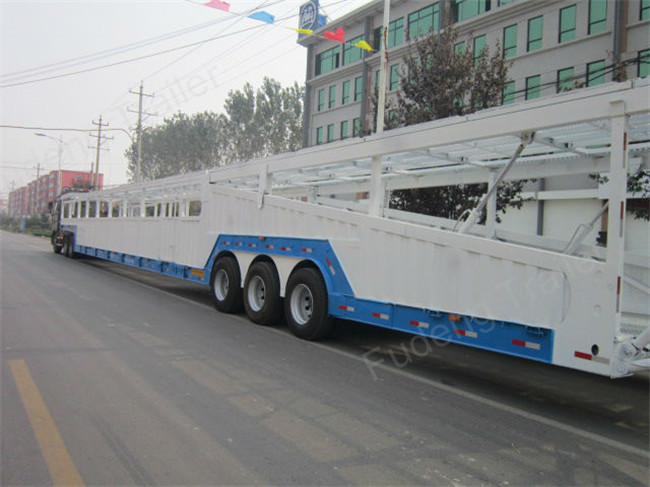

    3 Axles Car carrier Trailer Model.

    Tri-Axles 10 Car Transporter Trailer , Auto Vehicle Transport Trailer

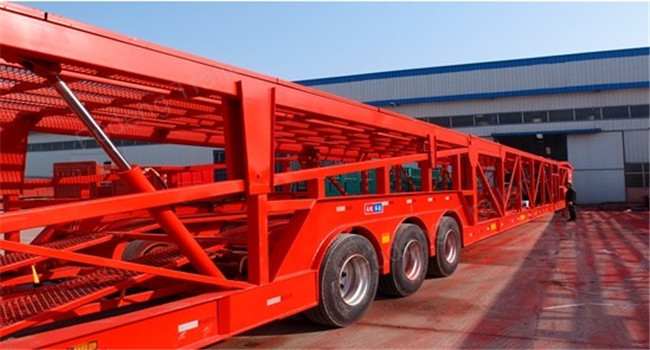

    14 sets car carrier trailers.

    Tri-Axles 10 Car Transporter Trailer , Auto Vehicle Transport Trailer


    Welcome to visit our factory!
