    2 Axles Hydraulic Car Carrier Trailer Skeletal Frame Type Custom Dimension

    2 axles skeletal frame type vehicle transport trailer/car carrier trailers

    A car carrier trailer, known variously as a car carrier trailer, car hauler, auto transport trailer,

    etc., is a type of trailer or semi-trailer designed to efficiently transport passenger vehicles via truck.

    Like other semi-trailers, most commercial car-carrying trailer attach to the tractor using a fifth

    wheel coupling. Trailers can either be enclosed, possessing walls like a conventional box trailer,

    which affords the shipped vehicles more protection at the cost of lower capacity; or open, as in the commonly seen skeletal tube steel design, which exposes the vehicles to the elements but allows for greater carrying capacity.


    Car carrier trailers Detail process:
    1. Send us inquiries on your desired product / mdel through our contact information.
    2. We shall reply you within 6 hours.
    3. Negotiations on your needed configuration.
    4. Configuration on the tech data.
    5. Sign contract.
    6.30% down payment or LC issuing.
    7. Production
    8. Manufacturig process updated news.
    9. Production completement.
    10. Shipment
    11. Custom Clearance
    12. A/S service for 1 year.


    Car carrier trailers Specification:

    Tare Weight10.7T (customized)
    Dimension12660mm*2590mm*1488mm (customized)
    Max payload (T)30T -40T (customized)
    Axles3Axles (customized)
    wheel base6510mm—9510mm (customized)
    Rim6.75-17.5
    Tire235/ 75R17.5 143/141
    Tire Wheelbase2475mm
    Tire No.12PCS (customized)
    SuspensionHydraulic suspension (customized)
    King pinJOST brand 2.5 inch and 3.5inch
    Main beamMaterial is WELTEN80 Steel ,Height: 400mm (customized)
    upper plate is 25mm, middle plate is 12mm, down plate is 25mm(customized)
    Side beamLength:7040mm 250mm*90mm*9mm
    Towing Pin Type"I" type
    Brake chamberN0.30 (type)
    Braking SystemABS and EBS (Customized)
    ABSWABCO (Brand)
    LightLED
    Voltage24V
    Receptacle4PCS (customized)
    PaintingAs customer's request
    Above is just one of our specialized semi trailers, we can design and produce according to customer's requirements.
    Please don't hesitate to contact me if you have any inquiry!!

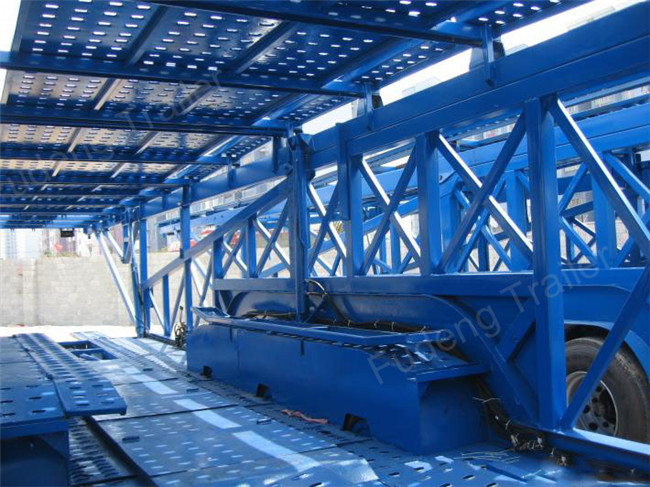

    2 Axles Car carrier Trailer Model.

    2 Axles Hydraulic Car Carrier Trailer Skeletal Frame Type Custom Dimension

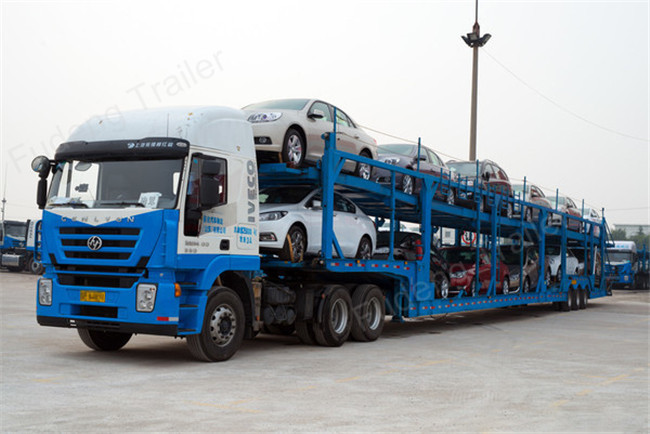

    12 sets car carrier trailers.

    2 Axles Hydraulic Car Carrier Trailer Skeletal Frame Type Custom Dimension


    Welcome to visit our factory!
