    CNHTC HOWO Tractor Head Trucks 420 Horse Power HW1697 Single Reduction Axle

    Ask Lasest Price
    Brand Name : HOWO Brand
    Model Number : Tractor head trucks
    Certification : CE/ISO/BV/ADR/DOT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Units per Month
    Delivery Time : 20-30days after deposit
    Price : negotiation
    • Product Details
    • Company Profile

    CNHTC HOWO Tractor Head Trucks 420 Horse Power HW1697 Single Reduction Axle

    CNHTC HOWO 420 horse power tractor head trucks used Howo A7 420HP truck


    For the Tractor head truck also called prime mover in some countries.

    According to clients' requirements, we can customize different models of trucks.

    The popular truck head models include:Howo 336HP 6*4 tractor, 371HP 6*4 tractor, 420HP 6*4 tractor, 336HP 4*2 tractor, 371HP 4*2 tractor.

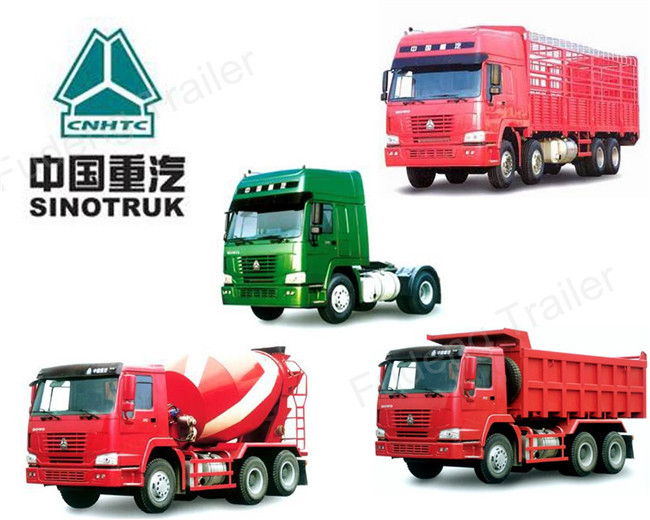

    According to the different brand, we can provide both SINOTRUK and Shacman and Dongfeng and Beiben to meet customer brand requirement.

    Our tractor truck price is really good with high quality ensured.

    Come to FUDENG, you can customized the trucks you like.


    Specification:

    Engine Model

    D12.42;Euro2;414HP/309kw;

    Displacement:11.596L

    Cabin

    HW79,VOLVO technology,High deck cab,

    2 sleepers;

    air conditoner,with 4-point support fully

    foating suspension +shock absorbers with transverse

    stabilizer

    Steering System

    ZF power steering, model ZF8098,

    ZF steering oil pump

    System pressure 18 MPa

    Brake(Wabco)

    - Service brake: dual circuit compressed air brake

    - Parking brake (emergency brake): spring energy,

    compressed air operating on rear wheels

    - Auxiliary brake: engine exhaust brake

    - Option: EVB.ABS

    Tyre12.00-20;option:11.00-20.
    Front AxleHF7drum,rated load capacity 7 ton.
    Driving AxleHW1697 single reduction
    Kerb weight9260kg
    Fuel tank capacity400L
    Permitted total weight of trailer39610kg
    Loading capacity Of saddle15610kg
    Axle base3200+1400 mm
    Front/Rear suspension1500/725 mm
    Wheel base (front/rear)2022/1850 mm
    Mini ground clearance267 mm
    Approach/departure angle16°/70°
    Max.speed92 km/h
    Max .gradeability33%
    Min.turning diameter15m
    Height from Saddle to ground(no load/full load)1360/1326 mm
    Front/rear Rotation radius2790/2230 mm

    Tractor Head Trucks Models.

    CNHTC HOWO Tractor Head Trucks 420 Horse Power HW1697 Single Reduction Axle


    6x4 Tractor Head Trucks.

    CNHTC HOWO Tractor Head Trucks 420 Horse Power HW1697 Single Reduction Axle
