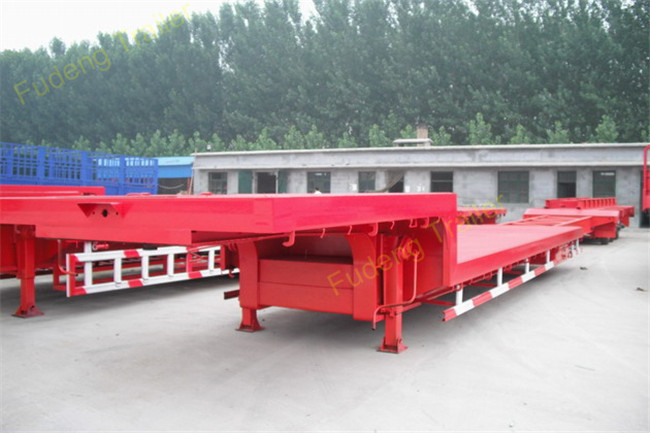

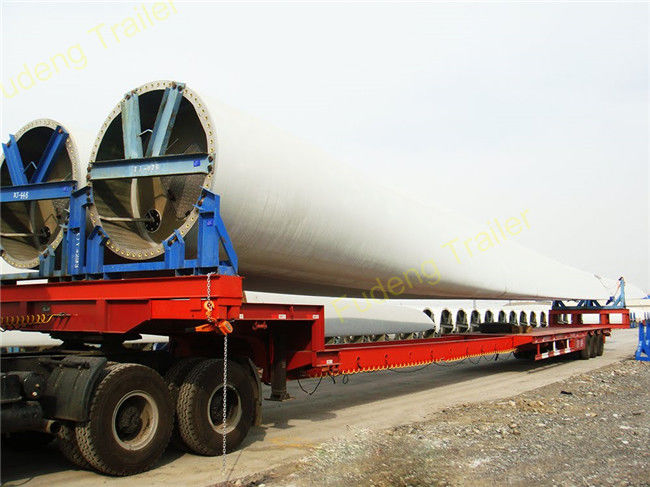

Extendable Lowboy Trailer , Wind Blade Transport Trailer , Lowbed
Semi Trailer
1.We have well experienced in reseaching and developing different
trailers:Hydraulic Wind Blade Lowbed Trailer, wind tower blades trailer,
wind blade semi trailer, Wind Turbine Blades Trailer, Wind Blade
Lowbed Trailer, extendable trailer blade, schnable trailer, wind
blade trailer, extendable low bed trailer, extendable traileretc.
2.High tensile strength steel
3.King pin:Optional for 2" or 3.5" Kingpin
| Specification | Extendable trailer |
| Tare Weight | About 8.5-14T |
| Dimension | 12000mm-18000mm*2500mm-1700mm*3100mm |
| Please indicate the working platform height and length. |
| Max Loading | 60 ton |
| Axle | 2/3/4/5 pcs axles, 13 T/14T/16T capacity , FUWA /BPW for optional |
| Tire&Rim | Dimension according to project requirement |
| Suspension | Mechanical suspension / Air suspension according to demand |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST or China brand single action, double speed(capacity:
24/26/28/30tons) |
| Main beam | Height: 450mm-5550mm, upper plate is 14mm-25mm, middle plate is
8mm-16mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
| Side beam | 25-30mm I steel |
| Ramp | Manual or Hydraulic type |
| Brake chamber | WABCO & HANDLEX |
| Light | LED light |
| Voltage | 12V or 24V |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1
unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of
anti-corrosive prime, |
| 2 coats of final paint |
Our Advantage
1- With well experienced semi trailer production company to offer
high quality and competitive prices semi trailer to our worldwide
valuable customers.
2- An professional team which is experienced with international
market and has strong technical capability to customized cost
effective.
3- Sell well in the international markets, such as African market (
Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana
ect.), Middle East, South Asia and South-America market.
4- 2 Years Guarantee for all the the beam of trailers, timely
shipment
If you have any interests for our Extendable Lowboy Trailer, pleasue don't hesitate to
contact us, we provide you the best solution for you. we will do
our best effor tto support at the
fist time. Thank you.
