Custom Extendable Trailer , Hydraulic Steering Wind Blade Lowbed
Trailer , 43 - 56 Meters flatbed trailers
Blade trailers are flat bed, double drop, drop deck or low bed trailers. 2 to
6-axle blade trailer have the capacity to be extendable by up to 2
to 4 times to 65 meters.
Due to its extending loading platform, the blade trailer is ideally
suitable for transporting of particularly long and bulky loads.
Fudeng wind blade trailer fulfills all conditions for the time
efficient and cost-effective transportation of long and bulky
goods, like wind power plants and building structures.
Suspension and Axle
Fudeng Blade Trailer can be equipped with either hydraulic or air suspension.
Various axle steering systems can be used as following:
1. Fixed axles
2. Friction-steered axles.
3. Hydraulic steering axles.
4. Turntable axles.
Applications:
Extendable blade hauler is suitable for the transportation of the following goods:
1. Wind power plants, like tower segments, rotor or turbine blades.
2. Structural elements, like steel and concrete elements.
3. Roof constructions.
4. Bridge elements
5. Pipes.
6. Other bulky goods or long material
Competitive Advantage:
1. Double beams, fully welded on both sides
2. Structure completely shot blasted, primed and painted
3. Air and electrical lines are retractable and mounted on steel
cable
4. Four steel rollers equipped with bearings.
Main Specification - Extendible Semi Trailer
| Brand | Fudeng Extendible Trailer |
| Dimension | 51700mmX3000mmX1300mm ( Optional ) |
| Extension Booms | 3 times telescopic |
| Hydraulic power station | 12 KW diesel engine |
| Axle | 3 unit or 4 unit Steerable Axles |
| Maximum steering angle | +/-25° |
| Suspension | Mechanical spring suspension, 8 piece reinforced |
| Tyre | 275/80R22.5, Triangle brand |
| Braking system | Dual-line braking system, Double brake chamber, WABCO Emergency
Valve |
| King pin | 3.5 inch high tensile steel bolted type |
| Landing gear | 2 units, The front one is JOST brand, the rear one is hydraulic
landing gear |
| Loading capacity | 60 Ton - 100Ton |

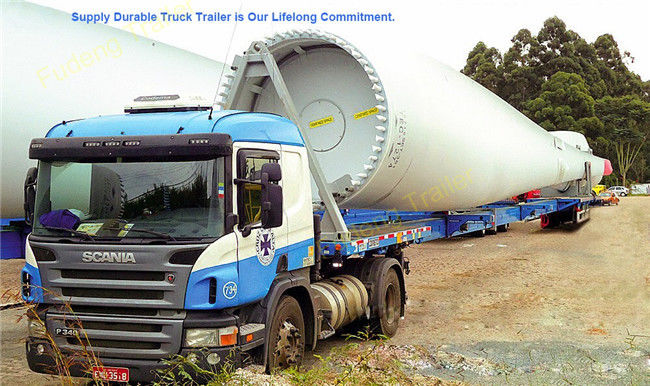

Extendable Trailer

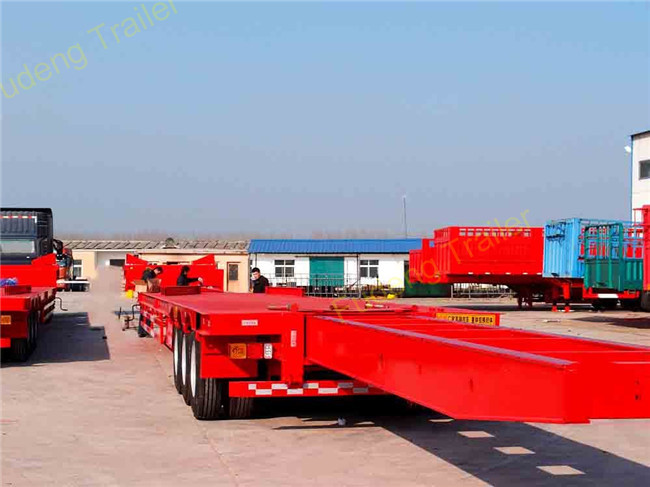

Extendable Trailer with 43m long
