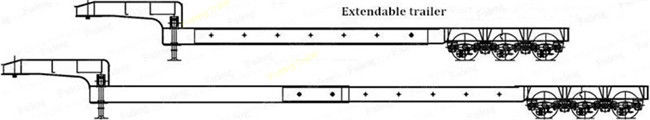

2 / 3 Axles Over Length Cargo Flat Bed Extendable Semi Trailer
Functions
1. This series road transporting over length cargo wind blade,wind
power transporting ,extendable length trailer is very hot sale for
transportng company.
2. The capacity is for 30tons - 500tons , we can manufacture it
according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need
with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring
suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover,
totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading
ladders, which can be mechanic spring ladders and hydraulic loading
ramps by different needs
| Product Information |
Product |
steering axles over length wind power trailer |  |
Brand Name |
Fudeng Brand |
Place of Origin |
Shandong province, China |
Color |
Any color will be available |
Product Specifications |
Parameter |
Outside Dimensions (L*W*H) |
(20 - 60meters)*2500*1550 |
features |
steering axles and overlength ,can more than 30meters |
steering |
Steering on every wheel |
Rated Load |
30-100 ton |
Tare Weight |
optional |
Running Gear |
Tires |
specification |
8.25-15, 7.50-15 or small vacuum tyre with no tube |
No. of tires |
optional |
Spare tire carriers |
optional |
Axles |
Brand |
FUWA (BPW optional) |
No. of axles: |
2,3 or 4 |
Axle-load |
12000kg |
Wheel rim |
24 units of 7.50-20 rim or 8.00 |
Suspension |
rigid suspension or air suspension |
Brakes |
brand |
TKL brand |
Brake chamber |
double air chamber |
System |
Dual line braking system /ABS |
Under Frame |
Main Beam |
material |
I beam ,Q345B, automatic submerged arc welded |
specification |
Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is
8mm |
Cross Beam material |
Q235B |
Side beam |
Channel steel |
Plate form |
Steel Sheet 3mm thickness or diamond plate(Also can choose other
thickness ,such as 2mm,2.3mm,4mm,5mm,6mm) |
King Pin |
50# or 90# |
Landing gear |
28Ton |
Accessory |
One tooling box with a set of standard trailer tool |
Electrical |
Voltage |
24V |
Receptacle |
7 ways (7 wire harness) |
Lights |
Front corner marker lamp :red ;reflector lamp :white |
Side marker :orange |
| Rear lamp :red; rear reflector :white; turn single lamp :orange |
Other |
Usage | This trailer is available for transporting large cargo of 100-3000
tons which cannot be disassembled in the industries of electricity,
mines, chemical industry, building as well as bridge construction. |
Painting ,marking and side guard can according to the customer's
requirement
|
Our advantage
1, we can do the designs according to the customers' requirements
2,we can offer you the high quality and reasonable price
3,we can offer your a good after-sell service
4,we have strong prefessinal design team
5,prompt delivery.small order is welcome
