    Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers

    Ask Lasest Price
    Brand Name : FUDENG Brand
    Model Number : Bulk cement tanker trailer
    Certification : CCC, CE, SGS, BV,ADR,DOT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Units per Month
    Delivery Time : 20-30days after Deposit
    Price : negotiation
    • Product Details
    • Company Profile

    Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers

    Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers


    Bulk cement tanker trailers Main Features: Using fully automatic computer CAD design techology, tanks using automatic longitudinal/ring to the welding seam is firm and level off, can be independent warehouse storage, shipment different abrasive materials, unloading speed, low residual rate, safety performance is high, easy to operate.


    Shape is round or V tanks,material can choose carbon steel, stainless steel, aluminum alloy. Inside the bag or fluidized bed or MIZIXING fluidized bed.


    Good perforance of simple structure, convenient maintenance, vulcanization.Can choose air compressor direct drive transmission shaft(optional belt drive and motor drive)


    Technical Index: Under the condition of working pressure of 0.2 Mpa, discharging speed is 1.2 to 1.5 T/mm residual rate of 2‰ or less,under certain conditions, the discharging height 25 m or more.

    Specification:

    Assembly NameCompositionSpecifications
    ChassisMain beam

    Q345Steel;The height of the beam is 500mm;

    Middle plate is 8mm;Down plate is 16mm.

    King Pin2”or 3.5”traction pin
    Dimensions(L*W*H)11980*2500*3800mm
    Tank bodyTank body &end plateQ235/5mm steel &6mm steel sheet r
    Manhole cover500mm manhole cover.2 sets with 2 breather valve
    Discharge valve &pipe4” disc valve&4” seamless steel tube
    Bottom valve1-2 sets of aluminum API pneumatic bottom valve
    SuspensionSuspension typeCommon mechanical(Option Air Suspension
    Steel Spring10/10/10
    Running systemAxle3 axle Fuwa Brand
    Wheel Rim9.0-22.5 steel wheel rim
    TireSpe:12R22.5; Number of Tire:8 pieces
    Brake systemBrake Chamber6 big chamber
    Brake ValveKTL Brand/WABCO
    Brake systemDual Line Brake system
    OtherTool box1 set standard tool box
    LightTail lamp with turn signal ,brake light & reflector, side lamp etc.
    Painting1 coat of anticorrosive prime, twice coats of final paint.
    Spare Tire Carriers2 pieces
    Leading gear28T Manual operating, Heavy duty landing gear
    WeightTare Weight9000Kg
    Loading Capacity42000 liters
    Axle weight load13T

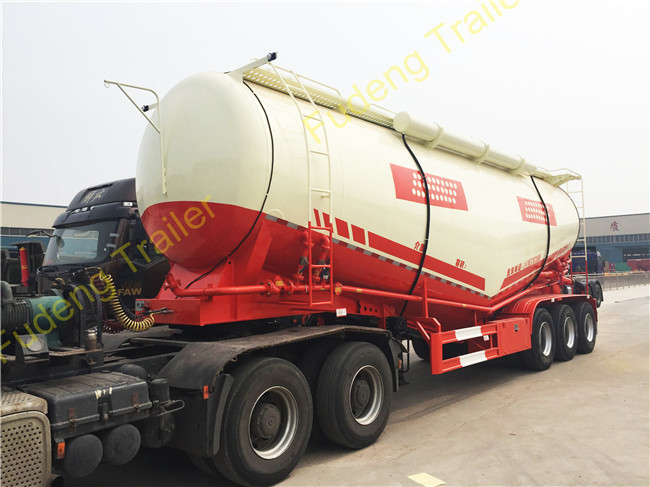

    50CBM Bulk cement tanker trailers.

    Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers

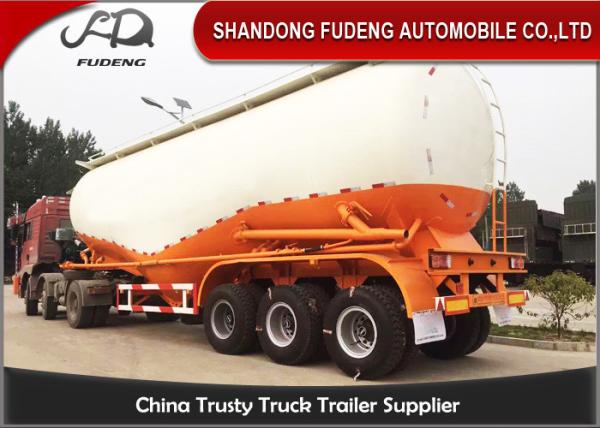

    40Tons Bulk cement tanker trailers.

    Carbon Steel V shape Bulk cement tanker trailers 3 axles silo cement carrier trailers
