Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement

    Buy cheap Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement from wholesalers

    Buy cheap Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement from wholesalers
    • Buy cheap Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement from wholesalers
    • Buy cheap Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement from wholesalers
    • Buy cheap Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement from wholesalers
    • Buy cheap Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement from wholesalers

    Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement

    Ask Lasest Price
    Brand Name : FUDENG Brand
    Model Number : Bulk cement tanker trailer
    Certification : CCC, CE, SGS, BV,ADR,DOT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500Units per Month
    Delivery Time : 20-30days after Deposit
    Price : negotiation
    • Product Details
    • Company Profile

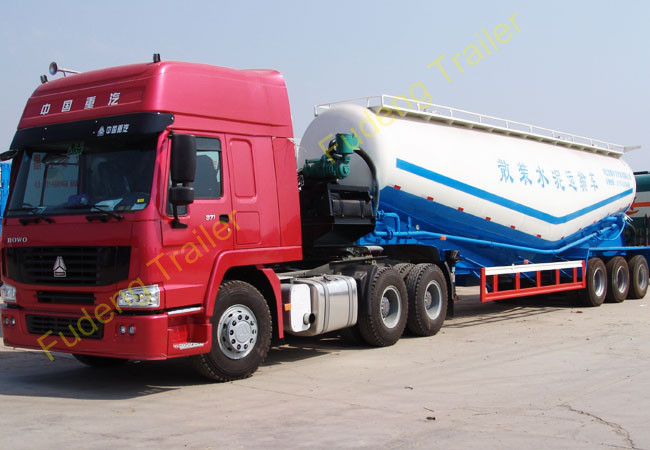

    Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement

    Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulker

    Bulk cement tanker trailers Main Features:

    1) Frame and kingpins: the frame is steel space frame low-welded structure,

    2) Suspension leaf spring suspension system for the triaxial suspension, is used to support the load, and absorbs road vibration and so on.
    3) The brake device and its operation: Semi-double pipe pneumatic braking system and equipped with
    anti-lock braking system (ABS)
    4) Electrical system: tractor-trailer has adapted to international common electrical system.
    5) External power and air compressor:There is sufficient air pressure 4100 diesel engine and an external
    dimension 10.00 Wuhu Automotive Compressor group, to ensure that the vehicle when unloading.


    Bulk Cement Tank Trailer Application:

    1. For dry powder transporting, such as bulk cement, flour, and so on.

    2. Volume is optional.

    3. High-tensile steel with strong load capacity.

    4. Air compressor and diesel engine are equipped.

    5. Can be designed according customer's requirement


    Specification:

    Assembly NameCompositionSpecifications
    ChassisMain beam

    Q345Steel;The height of the beam is 500mm;

    Middle plate is 8mm;Down plate is 16mm.

    King Pin2”or 3.5”traction pin
    Dimensions(L*W*H)11980*2500*3800mm
    Tank bodyTank body &end plateQ235/5mm steel &6mm steel sheet r
    Manhole cover500mm manhole cover.2 sets with 2 breather valve
    Discharge valve &pipe4” disc valve&4” seamless steel tube
    Bottom valve1-2 sets of aluminum API pneumatic bottom valve
    SuspensionSuspension typeCommon mechanical(Option Air Suspension
    Steel Spring10/10/10
    Running systemAxle3 axle Fuwa Brand
    Wheel Rim9.0-22.5 steel wheel rim
    TireSpe:12R22.5; Number of Tire:8 pieces
    Brake systemBrake Chamber6 big chamber
    Brake ValveKTL Brand/WABCO
    Brake systemDual Line Brake system
    OtherTool box1 set standard tool box
    LightTail lamp with turn signal ,brake light & reflector, side lamp etc.
    Painting1 coat of anticorrosive prime, twice coats of final paint.
    Spare Tire Carriers2 pieces
    Leading gear28T Manual operating, Heavy duty landing gear
    WeightTare Weight9000Kg
    Loading Capacity42000 liters
    Axle weight load13T

    35CBM Bulk cement tanker trailers.

    Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement

    1. 30m³-75m³ capacity available
    2.Unloading speed: 1.3ton / mins

    3.Residual ratio :<15kg


    30Tons Bulk cement tanker trailers.

    Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement


    Delivery&Shipping

    Customized Tri-Axles V shaped Bulk cement tanker trailers for transporting Bulk cement
