Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD1704 dump semi trailer
Certification :	CE, ISO, CCC, SGS, ADR
Payment Terms :	L/C, T/T or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

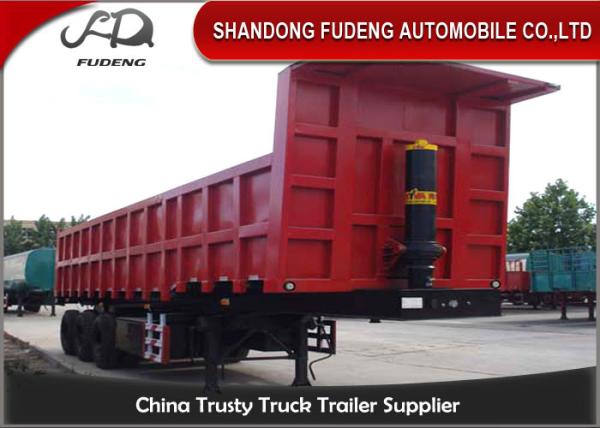

Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame

Large capacity dumping semi trailer transport coal , grain , sand

When you’re hauling grain, rocks, sand, gravel or waste, all the semi tippers available from Fudeng factory are built to withstand the harshest conditions, only the very best materials and world class manufacturing know how are used to create what is regarded as one of the finest quality and toughest semi trailers around.

Specifications
Tipper Body
Shape	Rectangle or U shape
Dimension	7.5-12m×2.5×4m (Outside)
Payload	40T-100T
Tare weight	About 7.5T-15T
Lifting system	Full set of Hyva hydraulic system/Chinese brand
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T) or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO

Hyva Hydraulic Cylinder Dump Semi Trailer 40T-100T Payload Steel Q345B Frame

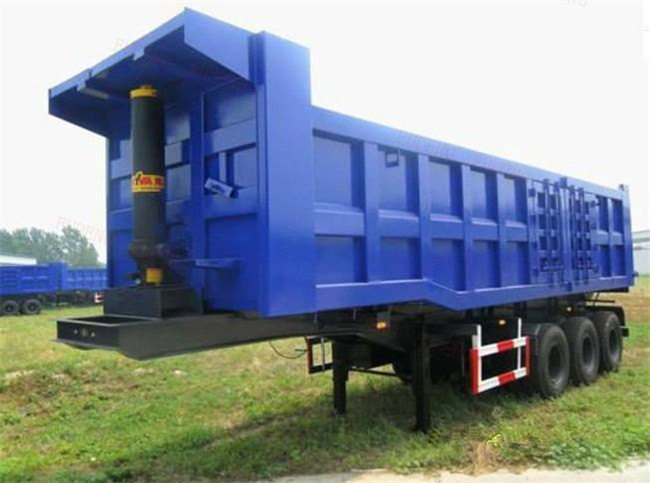

Look through the pictures to discover the full range and specifications of each individual Semi Tipper trailer we offer, if you can’t find what you want then give us a call and we will work with you to make the trailer you want.
