40 Tons Dump Semi Trailer With WABCO RE 6 Relay Valve Steel Material

Carbon steel 40 ton tractor hydraulic tipping semi trailer end lifter

When you want a semi tipper to meet your haulage requirements Fudeng has one perfectly suited to the task, if not Fudeng has the manufacturing skills to make it for you.

Tipper Trailer Specifications
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T) or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V

When you’re hauling grain, rocks, sand, gravel or waste, all the semi tippers available from Fudeng factory are built to withstand the harshest conditions, only the very best materials and world class manufacturing know how are used to create what is regarded as one of the finest quality and toughest semi trailers around.

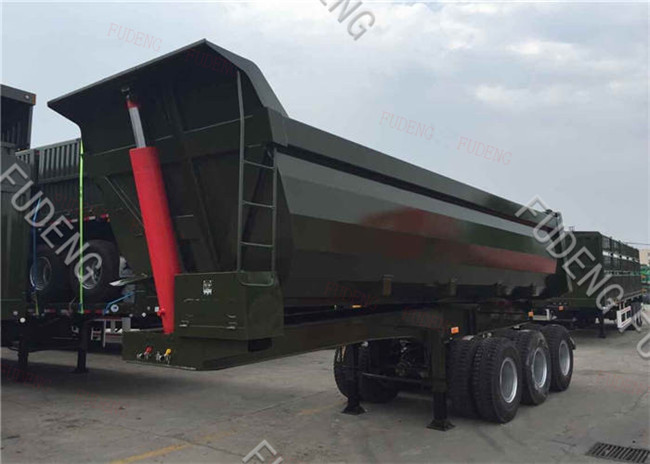

40 Tons Dump Semi Trailer With WABCO RE 6 Relay Valve Steel Material

Look through the pictures to discover the full range and specifications of each individual Semi Tipper trailer we offer, if you can’t find what you want then give us a call and we will work with you to make the trailer you want.
