    High Strength Steel End Dump Truck With BPW Axle / 30 Tons Semi Trailer Dump Truck

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : FDZH04015
    Certification : ISO,BV,SGS,CE
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 900 sets per month
    Delivery Time : 20 - 35 working days
    Price : negotiation
    • Product Details
    • Company Profile

    High Strength Steel End Dump Truck With BPW Axle / 30 Tons Semi Trailer Dump Truck

    High strength steel 2 axle 30tons dump semi trailer with BPW axle and WABCO system


    Product Features


    1 . Advanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.


    2 . Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.


    3 . Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.


    4 . Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.


    5 . Tool Box: Large capacity water-proof detachable tool box.


    6 . Hot-rolled structural steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.


    7 . Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.


    8 . Reliable dual circuit air brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.


    Specification


    Product typeDump Semi Trailer Series
    Axle2 axles ,13T/16T , BPW Brand
    ABS systemOptional
    SuspensionMechanical suspension (Germany type or America type) or Air suspension (china brand or BPW brand )
    Spring leaf90(W)mm*13(Thickness)mm*10Layer,optional
    Tires12.R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional
    Rim9.00-22.5/8.00-20/8.5-20 China brand
    King pinJOST 2.00 or 3.5 inch
    Landing gearJOST brand
    The material of main beamThe height of the beam is 500mm ,upper plate is 16mm ,down plate is 18mm,middle plate is 8mm .material is Q345B steel
    Bottom plate thickness5mm-8mm /Q235steel or can be optional
    Lifting systemfull set of HYVA hydraulic lifting cylinder
    Brake ChamberWABCO BE relay valve ;T30/30+T30 Spring brake chamber (TKL brand) ; Two pieces of 45L air tanks or China brand
    Electrical system24v,7 wire harness
    LightLED light (special for export market )
    Tool boxOne piece 1mx0.5mx0.5m (size can be choose freely )
    PaintingCompete Chassis sand blasting to clean rust ,1 coat of anti-corrosive prime ,2coats of final paint
    Note : buyerAccording to the requirement of buyer

    2 axle U shape Dump semi trailer


    High Strength Steel End Dump Truck With BPW Axle / 30 Tons Semi Trailer Dump Truck

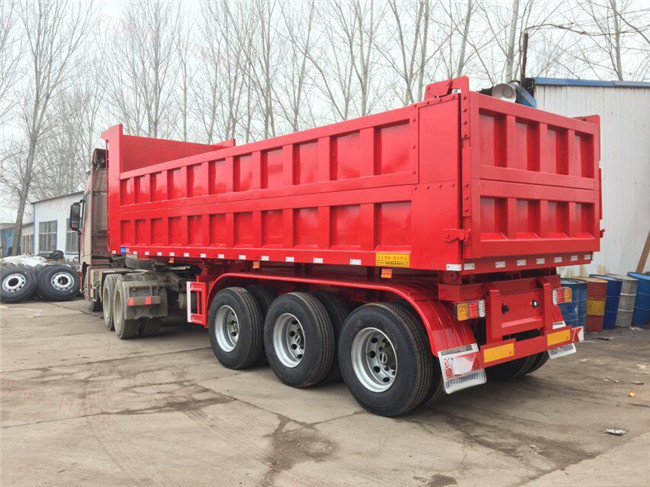

    3 axle Square shape Dump semi trailer


    High Strength Steel End Dump Truck With BPW Axle / 30 Tons Semi Trailer Dump Truck
