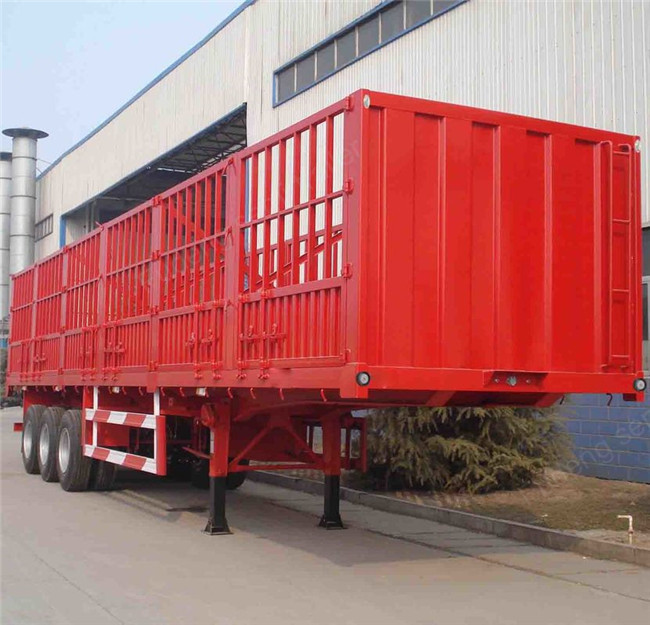

Livestock transport side wall semi truck trailer with 1800 mm side panel

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Livestock transport side wall semi truck trailer with 1800 mm side panel

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD1704
Certification :	CE, ISO, CCC, SGS, ADR
Payment Terms :	L/C, T/T or negotiate
Supply Ability :	600 sets per month
Delivery Time :	25-40 days after 30% deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

Livestock transport side wall semi truck trailer with 1800 mm side panel

Specifications
Dimension	12.5m×2.5m×1.7m (Outside)
Payload	30T-60T
Tare weight	About 8.5T
Fence	600mm-1800mm customized
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V

We have an experienced and technological team to customize the best products for customers according to the demand strictly.
It is capable of rough road condition. We use international standard heavy duty chassis and running system to cope with rough road condition.

Livestock transport side wall semi truck trailer with 1800 mm side panel

What we can provide you

1. Nice After-sales Service

We have many after-sales service points in Africa and Asia countries to provide free maintenance for our clients. And there are many Chinese chassis center providing chassis maintenance.

2. 24 hour replying.

When your trucks are of problem, you can call us at any time for professional advice.

3. Overseas engineers available.

We can dispatch our engineers to your place when the truck is of serious problem.

3. Spare parts available.

Some parts of the trucks are easily been worned out. We will provide quick wear parts when delivery, you can also buy them at any time you want from us.
