    Container transport side wall semi trailer with 600 mm fence

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1704 fence semi trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Payment Terms : L/C, T/T or negotiate
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

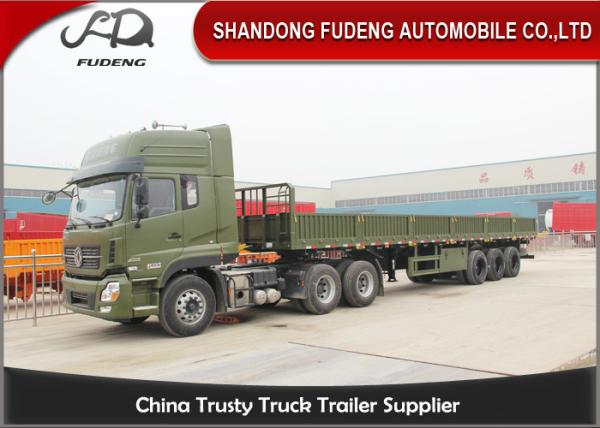

    Container transport side wall semi trailer with 600 mm fence

    Container transport side wall semi trailer with 600 mm fence

    Specifications
    Dimension12.5m×2.5m×1.7m (Outside)
    Payload30T-60T
    Tare weightAbout 8.5T
    Fence600mm-1800mm customized
    Chassis
    FrameWelding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
    Frame BeamUpper and lower plate is20mm,middle is10mm.height is 500 mm
    Frame FloorThe Thickness is 3-8 mm flat bed
    Axle2 or 3 axles, BPW/FUWA/HUAJING brand
    Landing GearJOST (D200T)or CHINA BRAND 28T
    King PinJOST 2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension/Germany or America type/air suspension
    Leaf Spring90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
    Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
    Rim8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
    Tire11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
    ABSOptional
    AccessoriesOne standard tool box
    Voltage24V
    Packing and shipping
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    Shipping TermsBy Bulk Cargo/RORO/40HQ container


    1. We have an experienced and technological team to customize the best products for customers according to the demand strictly.
    2. We will do quality text from the production of each trailer part to the finish of the whole trailer.

    Container transport side wall semi trailer with 600 mm fence


    The side wall is detachable. It can be used as a flatbed semi trailer and cargo semi trailer.


    Container transport side wall semi trailer with 600 mm fence


    What we can provide you

    1. Professional technical support.
    2. Reasonable financial suggestion.
    3. Economical Transportation planning.
    4. Comprehensive after-sale service.
