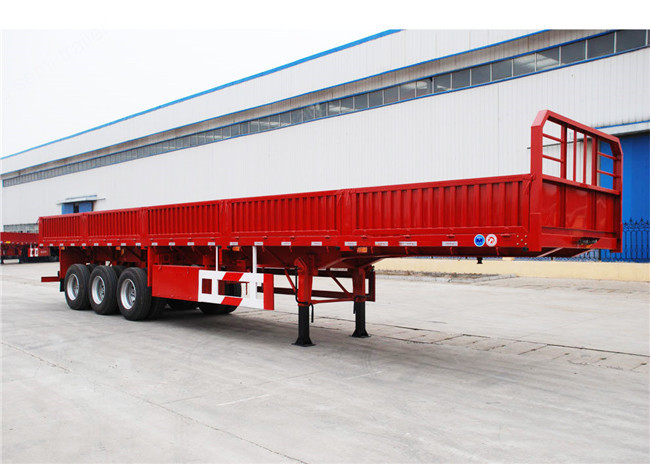

3 axle 40 ton Dropside Flatbed Semi Trailer , Side Wall Semi
Trailer With Single Tire
Fudeng produces high quality side wall semi trailer with high loading capacity from 40 ton to 60 ton , and
our side wall semi trailer are mainly used for carrying 40ft
container, 2X20ft contrainer and other bulk cargo,such as pipe,
steel, lumber, heavy equipment, and any other item, we can design
and produce the side wall semi trailer as customer demand.Should you have any interest in our flatbed
trailer with side wall, please don't heistate to contact us for the
best price.
ODM OEM>
Customized products according to customers drawings.
R&D TEAM
We have a professional research and development team,taking market
demand as the goal.
Quality Guarantee
CCC, ISO9001, SGS, BV, WMI and other certificates.
Fixed Suppliers
We have a long-term cooperation with FUWA,BPW,JOST,WABCO etc.
3 Axle Side Wall Semi Trailer ------- Specification
| Dimension | 13000×2700×3000mm (optional) |
| Loading Capacity | 40 ton |
| Axle | 13T/16T, FUWA/BPW |
| Rim | 9.00-22.5 |
| No. Of the Rim | 6 |
| Tire | 12 R22.5, 315/80R22.5 |
| No. Of the Tire | 6 |
| Suspension | Mechanical Suspension(Germany Type or America Type) Or Air Suspension(China brand or BPW brand) |
| Spring leaf | 90mm×16mm×10 or 100mm×12mm×12 |
| King pin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Landing Gear | JOST brand D200T or China brand 28Tons(two speed) |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate
is 16mm; Material is Q345 Carbon Steel. |
| Side beam | 16mm or 18mm channel steel(Material is Q235 carbon steel) |
| Side Wall | 600mm-1500mm for your choice |
| Brake chamber | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber(TKL brand); |
| ABS | Optional |
| Twist Locks | Four, Eight or Twelve pieces(Lifting type or Twist Screw type),
optional |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
| Tool box | One piece |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of
anticorrosive prime, 2 coats of final paint |
Details

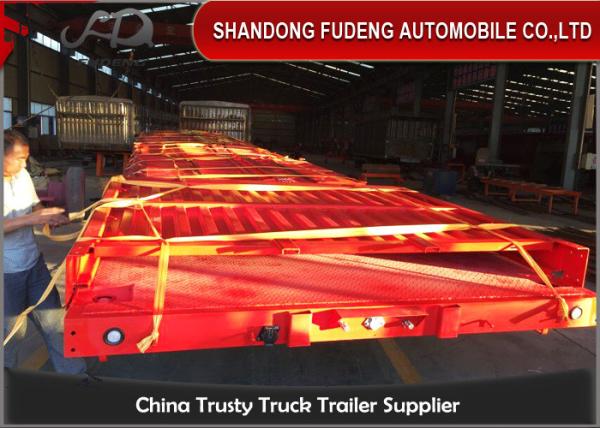

Side wall semi trailer with single tire
Side wall semi trailer with double tyres
We can provide trailer parts when you need it!
