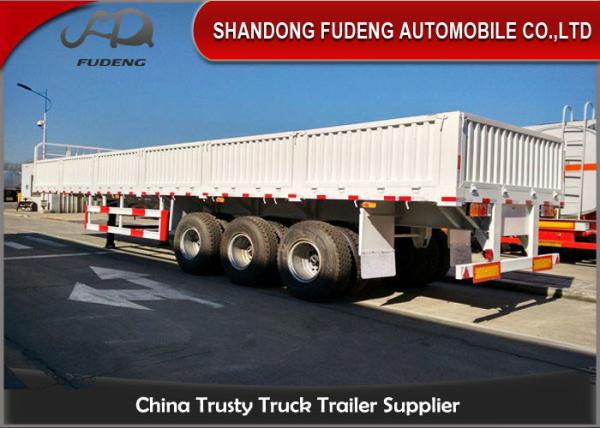

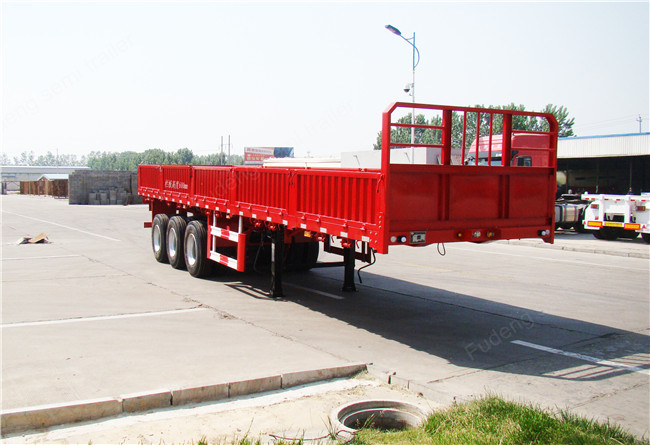

Heavy Duty 60Ton Side Wall Semi Trailer With WABCO Brake System
Features:
1,Steel construction:All chassis adopts the high-tensile steel.
2,Running system:Axles and suspensions system are complied with
International Standards;
3,Brake system:Adopt the International brands;
4,Electric system:China famous brands;
5,Painting:zinc-rich primer and modified urethane topcoat as
customers' choices.
6,Harness: We adopt the rubber Wiring harness. Its advantages
include waterproof, dustproof, anti-aging, safety
more,etc.Specially there are some high intension clamps to fix the
harness.
7,The side beam is high tensile steel which strengthen more the
Cargo platform.
8,Double air chambers are adopted on all axles in order to brake
the trailers safety and quickly.
9,Lights include the rubber grommets in order to decrease the
shaking and extend its using period.
Specification
| Axle | 3 axle , 12 T per axle |
| Landing gear | 28T landing gear |
| Breaking valve | WABCO breaking valve |
| Tire | 12R22.5 |
| No . tire | 12 unites |
| Tare weight | 8000-13000KG |
| King pin | 50# or 90# |
| Loading capacity | 30T-80T |
| Wheel rim | 900-22.5 |
| Suspension | Mechnical suspension |
| Light | LED light |
Detail
Service
1-Spare parts supply:
We have our own spear parts departments,have strong production and
distribution capability.We can satisfy your demand within 2-7
days.We always do our best to solve the problems,and put our
customers' interests in the first place.
2- After-sale:
We have our own overseas after-sales engineering team,can give our
customer the best servies to avoid your trouble back at home.
3-CKD services:
For many contries, the freight from China to there are very
expensive.
In order to save the cost on freight for customers, we can supply
you CKD services so that the trucks can be put into containers.
