Brand Name : | FUDENG Brand Dump Semi Trailers |
Model Number : | Dump Semi Trailers |
Certification : | ISO ,BV,SGS |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 500Units per Month |
Delivery Time : | 20-30days after deposit |
Price : | negotiation |
U shape Hyva system 3 axle dumpsemi trailer 50Tons rear tipper truck trailers
3 Axle Dump semi Trailer is ideal equipment to transport construction materials. It equipped with famous hydraulic lifting system hyva cylinder. It is also equiped with famous axle BPW or Fuwa brand. Its tires are also famous brand, Double Coin or Triangle brand as your optional choice.
Dump semi trailers can go any road conditions by reinforced model. That can make your transportation smoothly and make your business to get more benefits.
There are two types dump trailer: one is end dump trailer, anther one is side dump trailer.
Transportation of dump trailers: Sand, Coal, Stone, Metal and other construction materials.
Specifications | |
Tank Body | |
Shape | U shape |
Dimension | 9*2.7*1.85m (Outside) |
Box Dimension | 8.3*2.6*1.85m 40cbm |
Payload | 40T |
Tare weight | About 11T |
Lifting system | 196 hydraulic jacking Hyva Brand |
Chassis | |
Frame | Welding design or Special design Two beams.Square beam, connected by bolts and nuts, Q345B carbon steel material Two beams. |
Frame Beam | Upper and lower plate is 16mm and 18mm, middle is 8mm.height is 500 mm Bottom plate :5mm Side plate:5mm |
Axle | 3 axles, 16T FD Brand |
Landing Gear | Standard 28T JOST brand |
King Pin | 2.00 or 3.5 inch bolt-in king pin JOST brand |
Suspension | Mechanical suspension |
Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
Pneumatic | WABCO RE 6 relay valve, 3 axles synchronization |
Braking System | |
Tire | 315/80R22.5 optional |
ABS | KEMI brand |
Accessories | One standard tool box |
Voltage | 24V |
50Tons Dump semi trailers Model.
3 Axles U Shape Dump semi trailer.

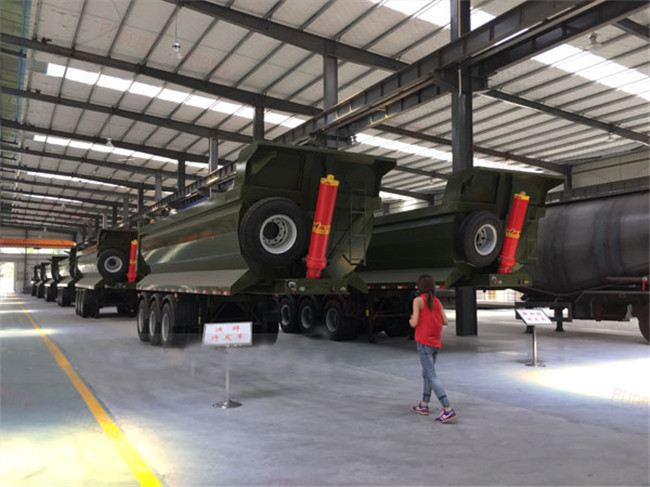

Welcome to visit our factory!
![]() |
