12 Wheelers 2 / 3 Axles Side Wall Semi Trailer 12.5m×2.5m×1.7m Dimension

Product Categories

Shandong Fudeng Automobile Co, Ltd.

Contact Now

Name: 12 Wheelers 2 3 Axles Side Wall Semi Trailer 125m25m17m Dimension
Brand: Fudeng
Price: 1 USD

Add to Cart

3 axles 12 wheelers side wall semi trailer drop pannel 50 ton

side wall semi trailer
Specifications
Dimension	12.5m×2.5m×1.7m (Outside)
Payload	30T-60T
Tare weight	About 8.5T
Fence	600mm-1800mm customized
Chassis
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO/40HQ container

We have an experienced and technological team to customize the best products for customers according to the demand strictly.
We will do quality text from the production of each trailer part to the finish of the whole trailer.

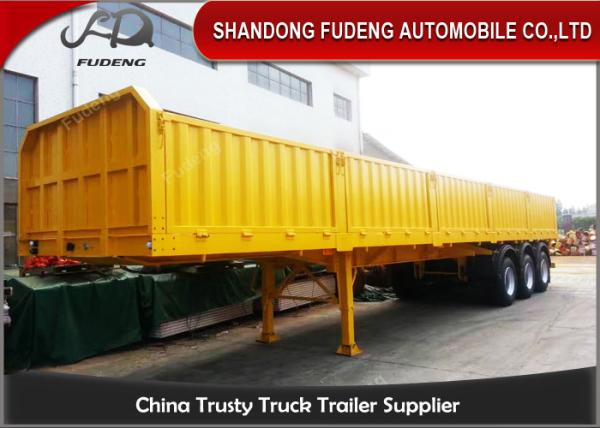

12 Wheelers 2 / 3 Axles Side Wall Semi Trailer 12.5m×2.5m×1.7m Dimension

The side wall is detachable. It can be used as a flatbed semi trailer and cargo semi trailer.

We can customize 2, 3, 4 axles trailers.

The fence height is from 600mm to 1800mm optional.

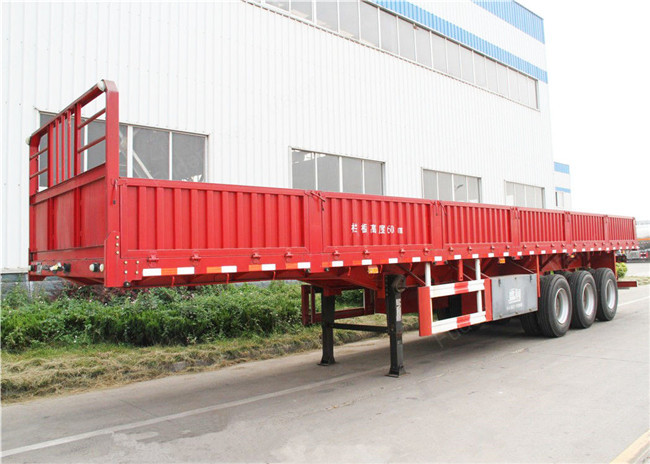

12 Wheelers 2 / 3 Axles Side Wall Semi Trailer 12.5m×2.5m×1.7m Dimension

What we can provide you

If you are interested in our products, please contact us now!
