45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton

Ask Lasest Price
Brand Name :	Fudeng
Model Number :	SDFD17033142
Certification :	CE, ISO, CCC, SGS, ADR
Payment Terms :	L/C, T/T or negotiation
Supply Ability :	200 sets per month
Delivery Time :	30 work days after 30% deposit
Price :	negotiation

Add to Cart

Product Details
Company Profile

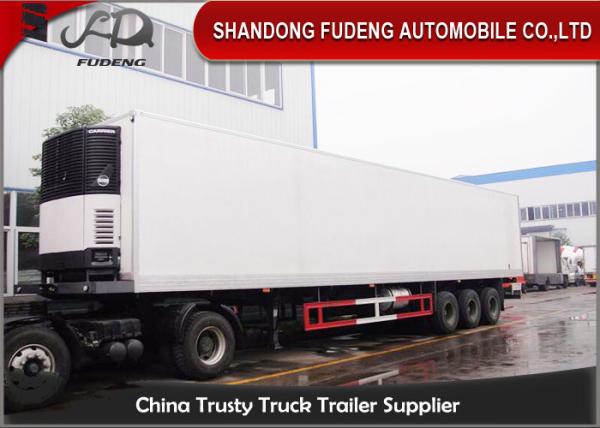

45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton

45 ft or 40 ft refrigerated trailer , 30 ton freezer van semi - trailer

Welcom Browse Our Product Page, If you have any question please feel free to contact me .
That's will be great honor for me if there have any message from you.

The main characters are as follows:
1. Light in weight:40% lighter than metal body.
2. Better insulation: K value less than 0.3w/m2k.
3. High in strength and long life: 5 times longer than metal body.
4. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
5. Easy to assembly and repair at site.

45 Ft / 40 Ft Refrigerated Cargo Trailer For Food Storage Max Payload 30 Ton

Specification

Specification	45feet refrigerated semi-trailer
Dimension
External (length x width x height):	12,200mmx2,600mmx4,000mm
External (length x width x height):	11,971mmx2,496mmx2,333mm
Coupler Height (unload):	1,370mm
King Pin Setting (kingpin to front end):	1,000mm
Wheel Distance (king pin to first axle):	8,155mm
Axle space:	1,310mm
Rear Floor Height:	1,468mm (depends on fifth wheel height)
Landing Gear location (from the king pin):	2,450mm
Weight:
Tare Weight (tolerance ±4%):	7,000kg
Maximum Axle Payload (distributed payload)	20,000kg
Maximum King Pin Payload (distributed payload):	10,000kg
Maximum Gross Weight:	30,000kg
Noted:	Customized products is available
