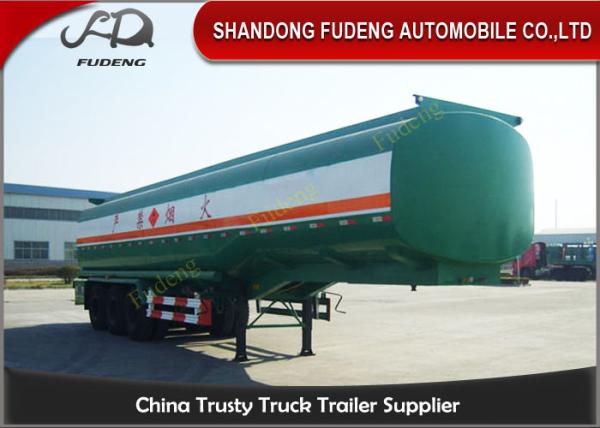

3 Axles Diesel / Petrol Tanker Trailers , 45000 L Carbon Steel Semi
Tanker Trailers
All Diesel Tank Trailer are engineered and custom built to meet the needs of each
customer, based on application, regional weight laws, severity of service, operational
efficiency and personal
preferences.
Ranging from 4,000 gallons to 15,000 gallons in both straight
elliptical and double taper designs, Tanker Trailer can be built
with 1 to 6 compartments. Designed with the latest technology in
air operated
vapor vents and emergency valves, Overfill systems, Intraxx air
ride suspensions and HALDEX Roll
Stability, Fudeng Diesel Tank Trailer provide unmatched value and
performance for decades. Let us help
you design a tank trailer that is just right for your operation.
Specification
| Specification for 45,000L oil tanker semi trailer |
Dimension Parameters | Total length(mm) | 12500 |
| Total Width(mm) | 2500 |
| Total height(mm) | 4000 |
| Volume( m³) | 45CBM |
| Weight | About 6000kg-10000kg |
| Tank Capacity | 45000L |
| Tanker body | 5mm Q345B |
| End Plate | 6mm |
| Wave Plate | 4mm |
| Compartment | SIX (7500LX6) |
| Discharging Valve | SIX API Valve (Bottom Loading) |
| Manhole cover | Carbon steel manhole cover 500mm |
| Discharging pipe | Diameter is 4 inch |
| Ball Valve | SIX |
| Shape | Round |
Main Configuration | Axle | 3 axle , FUWA brand 13Ton Loading Capacity |
| King Pin | JOST 2.00 / 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Landing gear | JOST (D200T) 28Ton |
| Accessories | One standard tool box,2sets spare tire rack |
| Voltage | 24V |
| Pneumatic braking | WABCO RE 6 relay valve, spring brake chamber |
| Main beams | Welding design or special design beam. connected by bolts and nuts, Q345 carbon steel material |
| Rim | 9.00-22.5 china brand |
| Tire | 12R22.5 Double Star Brand |
| Painting | Complete chassis and blasting to clean rust, 1 cost of
anticorrosive prime .2coats of final paint |
Pls Notice: this is for your consideration only
Actual datas depend on your actual requst!
4 axle 60000 L Fuel tanker semi trailer with 5 compartments
3 axle 45000 L Fuel tanker semi trailer
We can produce many types of semi trailer and full trailer even
trailer parts .
if no trailer is your like , you can tell me your actual
requirements , customized is available .
