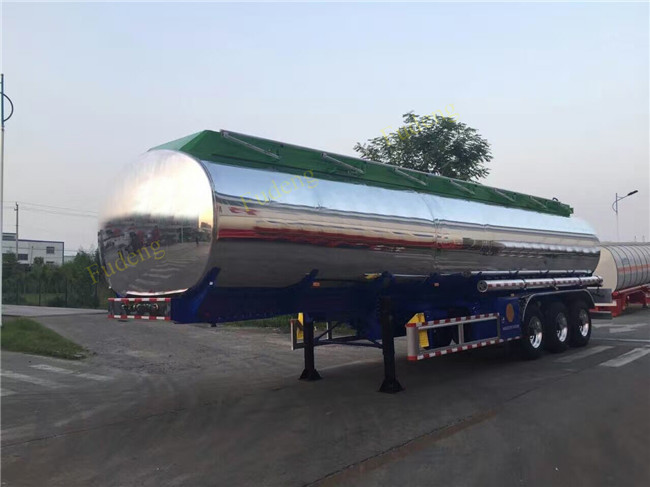

40cbm fuel tanker semi trailer , Stainless steel water tank semi
trailer
Fabrication technique for oil tanker semi trailer
semi-trailer is divided into two parts, the chemical tanks and the
skeleton or bracket to support tank.
Oil tanker semi-trailer tank is made of Stainless steel. the tank
inner has built-in multichannel enhanced wave clapboard, has hole
on clapboard bottom in order to reduce the impact force of oil on
the inner wall o tank and improve the strength of the tanks.
Combined opening is located at the top of the tank, a self-locking
small cover in the large cover, upper cover is breathing valve
installed to ensure that the tank atmospheric pressure inside and
outside is consistent; With electrostatic grounding line.
Install oil pumping system, through the power takeoff from
transmission to generate force.the
oil tanker semi trailer can be self-priming and draining; with two
sucker tubing, equipped with quick release coupling, suction
distance is six meters. Two fire extinguishers and special tools.
Specification
| Fuel Tank Semi Trailer (Capacity could be customized) |
| Weight | |
| Tare Weight | 9000kg |
| Loading Capacity | 40T |
| Axle Weight Load | 13T |
| Axle number | 3 |
| Axle specs. | FUWA Brand |
| Suspension |
America type mechanical Suspension
|
| Wheel | 12R22.5 |
| Landing gear | 28Ton standard capacity |
| Compartment | One |
| King Pin | 2’ and 3.5’ inter-changeable traction pin |
| Dimensions(LxWxH) | 12000×2500×3900mm |
| Steel Spring | 10/10 pieces per axles |
| Tire: | 12 pcs |
| Spare tire carrier: | 1 piece |
| Frame: (specs. and materials) | Automatic submerged arc welded Main beams |
|
| tank body thickness: 5mm stainless steel |
| Brake: | TWO double and two single chamber |
| Electrical: | |
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
| Light color: | (LED light) |
| Side marker lamp | Orange |
| Rear lamp | Red |
| Turn signal lamp | Orange |
| Miscellaneous: | |
| Painting | Can be choose freely |
| Marking | According to the requirement of the buyer |
| Side Guard | According to the requirement of the buyer |
| Tools box | One pieces or According to the buyer |
The Above is our standard specifications only, we could customize
as your actual demands/dimensions~!
Contact me freely if you have any needs, we can do a lot~!
