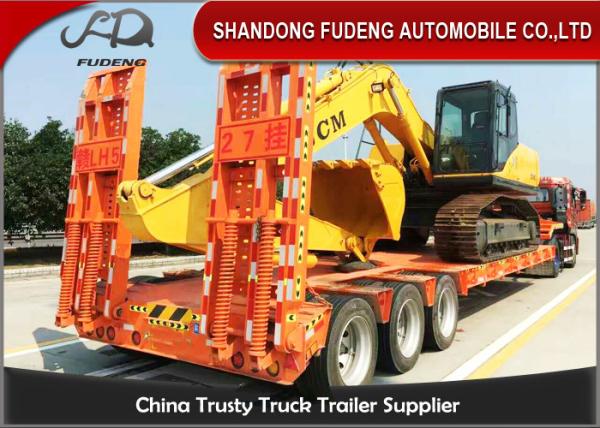

    3 axles 12 tires low bed trailer, 50 ton capacity Mechanical suspension

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1702 low bed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Payment Terms : L/C, T/T
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

    3 axles 12 tires low bed trailer, 50 ton capacity Mechanical suspension


    3 axles 12 tires low bed trailer, 50 ton capacity Mechanical suspension



    Low bed semi trailer is fulfil the dual purpose of carrying loads which are both heavier and taller than average, ensuring that a range of equipment and machinery can be transported safely and legally. These trailers can be coupled with standard truck cabs, but they feature a load deck that drops lower after the wheels so that the load bed can be much closer to the road surface.


    Specifications
    FrameWelding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
    Frame BeamUpper and lower plate is20mm,middle is10mm.height is 500 mm
    Frame FloorThe Thickness is 3-8 mm flat bed
    Axle3 axles or customized, BPW/FUWA/HUAJING brand
    Landing GearJOST (D200T)or CHINA BRAND 28T
    King PinJOST 2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension/Germany or America type/air suspension
    Leaf Spring90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
    Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
    Rim8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
    Tire11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
    ABSOptional
    AccessoriesOne standard tool box
    Voltage24V

    3 axles 12 tires low bed trailer, 50 ton capacity Mechanical suspension


    3 axles 12 tires low bed trailer, 50 ton capacity Mechanical suspension


    AREAS OF USE

    The low bed trailer is suitable for the transport of:

    • Construction machines (excavation and road construction, recycling,...)
    • Forestry machines (harvester, skidder, forwarder,...)
    • Farming machines (tractors, combine harvesters,...)
    • Wind power plants (tower segments, generators, rotor or turbine blades)
    • Structural elements (steel and concrete elements)
    • Industrial parts (transformers, crane-loaded goods,...)
    • Lifting vehicles (lifting platforms, fork-lift trucks,...)
    • Crane systems (cranes, crane weights, crane components)
    • Conveying and crushing systems (demolition and recycling industry)
    • Track-guided vehicles (trams, locomotives, wagons)
    • Bulky goods, long materials and heavy loads

    Welcome to contact us to get more information.
