    2 axles low bed semi trailer 30 ton low loader with mechanical ladder

    Ask Lasest Price
    Brand Name : Fudeng
    Model Number : SDFD1702 low bed trailer
    Certification : CE, ISO, CCC, SGS, ADR
    Payment Terms : L/C, T/T
    Supply Ability : 600 sets per month
    Delivery Time : 25-40 days after 30% deposit
    Price : negotiation
    • Product Details
    • Company Profile

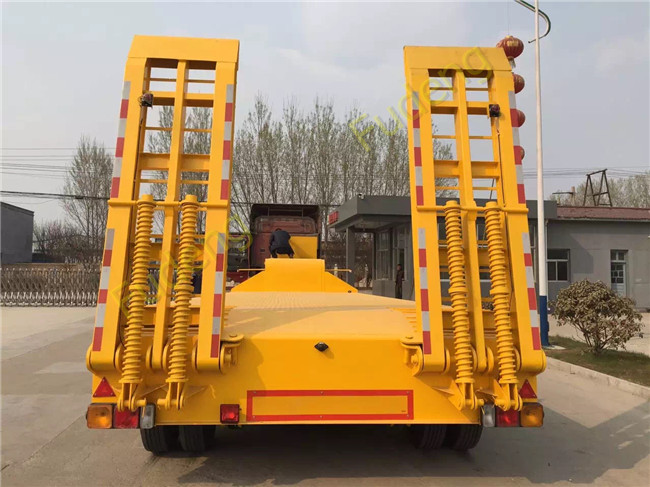

    2 axles low bed semi trailer 30 ton low loader with mechanical ladder


    2 axles low bed semi trailer 30 ton low loader with mechanical ladder


    Low bed semi trailer is fulfil the dual purpose of carrying loads which are both heavier and taller than average, ensuring that a range of equipment and machinery can be transported safely and legally. These trailers can be coupled with standard truck cabs, but they feature a load deck that drops lower after the wheels so that the load bed can be much closer to the road surface.

    Our low bed semi trailer advantages

    1. The main beam is designed as special double vertical plate which is more solid than single vertical plate.
    2. The gooseneck is inside and outside reinforced to achieve heavy duty tranportation.
    3. The ladder and trailer body are connected by mechanical spring make it easy operate and high-intensive.
    4. The side beams are I shaped steel beam structures. Checkered floor aims increase friction and prevent cargo from skidding.

    Specifications
    FrameWelding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
    Frame BeamUpper and lower plate is20mm,middle is10mm.height is 500 mm
    Frame FloorThe Thickness is 3-8 mm flat bed
    Axle3 axles or customized, BPW/FUWA/HUAJING brand
    Landing GearJOST (D200T)or CHINA BRAND 28T
    King PinJOST 2.00 or 3.5 inch bolt-in king pin
    SuspensionMechanical suspension/Germany or America type/air suspension
    Leaf Spring90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer
    Pneumatic Braking SystemWABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
    Rim8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
    Tire11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
    ABSOptional
    AccessoriesOne standard tool box
    Voltage24V

    2 axles low bed semi trailer 30 ton low loader with mechanical ladder


    2 axles low bed semi trailer 30 ton low loader with mechanical ladder


    Our low loader is adopted to transport construction machines, lifting vehicles and industrial parts.


    Welcome to contact us to get more information.
